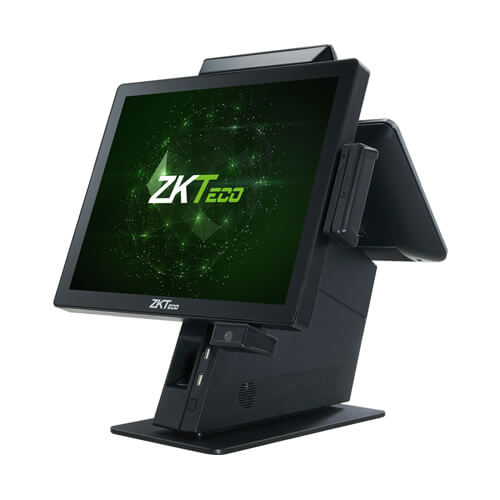

ZKTeco ZKBio810 POS Display


ZKTeco ZKBio810 POS Display

Features
• Power-efficient Intel® Celeron J1900 2.0 GHz Quad-Core processor
• 15” Bezel-free true-flat display with PCAP touch
• Slim stand design with small footprint
• Multiple I/O interfaces for peripherals
• Optional built in 1D/2D barcode scanner, MSR, RFID
• Optional VFD&10’’ customer display
• Faster installation and maintainability

392,041.22

ZKTeco ZKBio810 POS Display Parameter

Model NameZKBio810ZKBio830ZKBio850
System
ProcessorIntel® Celeron® J1900 Quad Core Processor (2.0 GHz)
Intel® Core™ i3-4005U Pro cessor(1.7GHz)
Intel® Core™ i3-4010U Pro cessor(1.7GHz)
Intel® Core™ i5-4200U Processor
(1.6 GHz up to 2.6 GHz)
Intel® Core™ i5-4210U Processor
(1.7 GHz up to 2.7 GHz)
System Memory2GB Standard, DDR3L 1666MHz (Max.8GB)
Storage Device32GB Msata SSD Standard,1*2.5’’ HDD / 2.5’’ SSD
OS SupportedWindows 7,Windows 8, Windows 10 IoT Enterprise, POS Ready 7,Linux
AudioRealtek ALC662
ZKTeco ZKBio810 POS Display and Touch
Types15” TFT LCD, LED Backlight
Resolution1024*768
Touch ScreenFive-wire Analog Resistive or Projected Capacitive
Customer DisplayLED(8C digital tube)
External I/O Ports
VGA1*DB-15
USB5*USB 2.0 & 1*USB 3.06*USB 2.0 & 2*USB3.06*USB 2.0 & 2*USB 3.0
COM533
LAN122
Audio1*Line-out1*Line-out, 1*Mic In1*Line-out, 1*Mic In
HDMI011
Cash Drawer100
Physical Environmental
Operating Temperature0 ~ 35 at 20%-80% Humidity
Storage Temperature– 20 ~ 55 at 20%-80% Humidity
Dimensions(L*W*H)347*372*402mm
Packing Dimensions450*420*480mm
Net Weight6.10kg
Packing Weight8.21kg
Power SupplyAdaptor 12V DC 5A
CertificationCE FCC
Options & Peripherals
Second Display10”TFT LCD
Customer Display(VFD)VFD(2*20 lines)
MSR3 Tracks
FingerprintBuilt-in fingerprint reader
