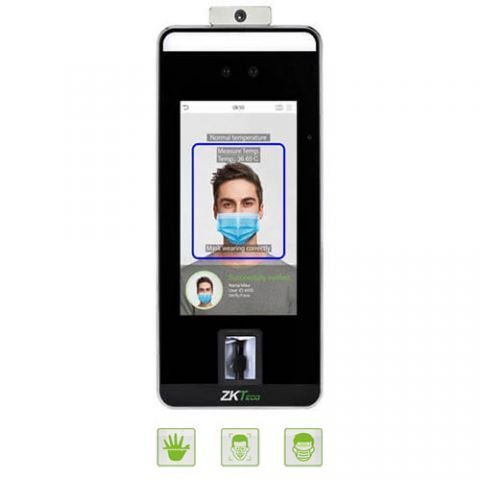

ZKTeco SpeedFace-V5L[TD] Device is a fully upgraded version of the SpeedFace-V5L Visible Light Facial Recognition Terminal,
using intelligent engineering facial recognition algorithms and the latest computer vision technology. It supports
both facial and palm verification with large capacity and speedy recognition, as well as improves security
performance in all aspects.
ZKTeco SpeedFace-V5L[TD] Device adopts touchless recognition technology and new functions namely temperature detection
and masked individual identification which eliminates hygiene concerns effectively. It is also equipped with ultimate
antispoofing algorithm for facial recognition against almost all types of fake photos and videos attack. Importantly,
the 3-in-1 palm recognition (Palm Shape, Palm Print and Palm Vein) is performed in 0.35 sec per hand; the palm data
acquired will be compared with a maximum of 3,000 palm templates.
The terminal with temperature and mask detection will be a perfect choice to help reduce the spread of germs and
help prevent infections straightly at each access point of any premises and public areas such as hospitals, factories,
schools, commercial buildings, stations during the recent global public health issue with its fast and accurate body
temperature measurement and masked individual identification funtions during facial and palm verification.
ZKTeco SpeedFace-V5L[TD] Device Features
· Visible Light Facial Recognition
· Better hygiene with touchless biometric authentication, temperature detection and masked individual identification
· Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
· Multiple Verification Methods: Face / Palm / Fingerprint / Password
· Mask detection
· Body temperature detection
· Temperature Measurement Distance: 30 ~ 50cm (1~ 1.64ft)
· Temperature Measurement Accuracy: ±0.3°C – 0.5°C
· Temperature Measurement Range: 34 ~ 45°C (93.2 ~ 113°F)
* Facial verification for masked individuals will increase FAR. Palm verification for masked individuals is
recommended. Temperature measurement data is for reference only, not for medical use.
SpeedFace-V5L[TD] is available for indoor enviroments without wind or direct sunlight.
ZKTeco SpeedFace-V5L[TD] Device Parameter
|Display||5-inch Touch Screen|
|Fingerprint Capacity||6,000 (Standard); 10,000 (Optional)|
ADMS, T9 Input, DST, Camera, 9-digit User ID, Access Levels, Groups, Holidays, Anti- passback,
Record Query, Tamper Switch Alarm, Multiple Verify Modes.
|Hardware||900MHz Dual Core CPU, Memory 512MB RAM / 8G Flash, 2MP WDR Low Light Camera,Adjustable Light Brightness LED|
|Communication||TCP/IP, WiFi (Optional), Wiegand input / output, RS485|
|Access Control Interface||3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input|
|Facial Recognition Speed||≤1s|
|Biometrics Algorithms||ZKFace V5.8 & ZKFinger V10.0 & ZKPalm V12.0|
|Power Supply||12V 3A|
|Operating Humidity||10% – 90%|
|Operating Temperature||16°C ~ 32°C (60.8°F ~ 89.6°F)|
|Dimensions (W*H*D)||91.93 * 220 * 22.5 (mm)|
