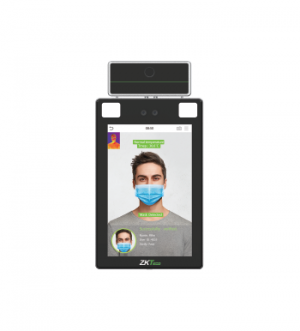

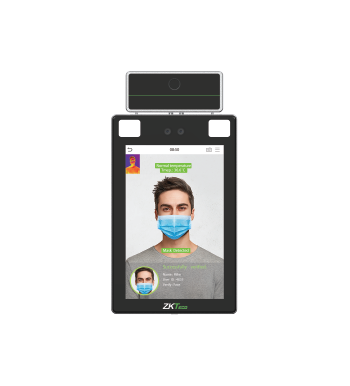

ZKTeco ProFace X [TI] Face Device


ZKTeco ProFace X [TI] Face Device

• Ultra-large capacity of facial templates for 1:N verification: 30,000 (standard); max. 50,000 (optional)
• Huge capacity of palm templates; 1:N – 5,000 palm templates
• Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack, and 3D mask attack
• Intelligent energy-saving design; precisely evaluation of the distance (up to 2.5m (8.2ft)) between the user and the device by
a microwave detector before waking up the recognition terminal
• 2MP starlight CMOS sensor camera with WDR function

274,562.64

ZKTeco ProFace X [TI] Face Device

ZKTeco ProFace X [TI] Face Device is a fully upgraded version of the ProFace product line, which is designed to deal with all kinds of scenarios. Powered by the ZKTeco-customized CPU for running the intellectualized engineering facial recognition algorithm and the latest computer vision technology, ProFace X [TI] supports both facial and palm verification with large capacity and rapid recognition speed, boosting the security performance in all aspects.

ZKTeco ProFace X [TI] Face Device also helps eliminate hygiene concerns; not only because of the contactless recognition technology it is equipped with, but also because of the new functions namely body temperature detection and masked individual identification.

The facial recognition capability has reached a new height in the biometrics technology industry with a maximum of 50,000 facial templates, recognition speed of less than 0.3 sec per face, and ultimate anti-spoofing ability against almost all types of fake
photos and videos attack.

In addition, the 3-in-1 palm recognition (Palm Shape, Palm Print and Palm Vein) is performed in 0.35 sec per hand; the palm data acquired will be compared with a maximum of 5,000 palm templates.

As mentioned above, ZKTeco ProFace X [TI] Face Device can assist in reducing the risk of infection and germs spreading during the recent global public health issue as well. The enables fast and accurate body temperature measurement and masked individual identification during facial and palm verification at all access points, especially in hospitals, factories, schools, commercial buildings, airports, stations, and other public areas

ZKTeco ProFace X [TI] Face Device Parameter

Capacity
 Faces30,000 (1:N) / 50,000 (Optional)
Palm5,000 (1:N)
Users50,000
  Transactions1,000,000 / 2,000,000(Optional)
User Photos10,000
Event Photos10,000
CompatibilitySecurity Relay Box / Wiegand / RS485 / RS232 Slave Reader with FP / Barcode / QR-code / ZKBioSecurity and ZKBioAccess Software
Hardware 900MHz Dual Core Customized Computer Vision CPU
 512MB RAM / 8G Flash
8″ High light (400lux) IPS Touch LCD
 2MP WDR Low Light Camera
Adjustable Light brightness LED / Hi-Fi Voice / High Sensitivity Microphone / Distance Detection Sensor / Reset Button and Tamper Switch
Access Control InterfaceLock Relay Output / Alarm Output / Auxiliary Input / Exit Button / Door Sensor
Special Functions 0.3s Hight Speed Facial Verification
Liveness Detection / HTTPS Communication Encryption (Optional)
 Event Snapshot
Standard Functions:Access Levels, Groups, Holidays, DST,Duress Mode (Password), Anti-Passback,Record Query, Tamper Switch Alarm,Custom Wallpaper & Screen Saver
Preventative MeasuresMask detection / Body temperature detection
Temperature Measurement Distance:30cm~120cm (0.98ft~3.94ft)
Temperature Measurement Accuracy: ±0.3°C
Temperature Measurement Range: 20°C~50°C(68°F ~ 122°F)
CommunicationTCP/IP / Wiegand Input / Output / Wi-Fi (Optional) / RS485 / RS232
Additional Info
Face Algorithm:ZKLiveFace5.8
Palm:FAR ≤0.01%; FRR ≤1%
Working Temperature:16°C ~ 35°C,(60.8°F ~ 95°F)
Working Humidity:≤93%
Storage Temperature:-40°C ~ 65°C (-40°F ~ 149°F)
Net Weight: 853g
Dimensions (H*L*D):279*143*27mm
Power
Operating Voltage:12V DC
Current Draw:< 2,000mA

• 8” touch screen with 400 lux, which offers high visibility under strong and direct light
• Wide range of working temperature (16°C ~ 35°C; 60.8°F ~ 95°F)
• 0.1s High Speed Temperature Detection, measurement distance of 30 – 120cm
• Temperature Measurement Accuracy: ±0.3°C (±0.54°F) , tested in a distance of 80cm (2.63ft) under 25°C (77°F) environment
• Mask detection; facial verification available with masks
* Facial verification for masked individuals will increase FAR. Palm verification for masked individuals is recommended.
Temperature measurement data is for reference only, not for medical use.
ZKTeco ProFace X [TI] Face Device is avialable for indoor enviroments without wind or direct sunlight.
