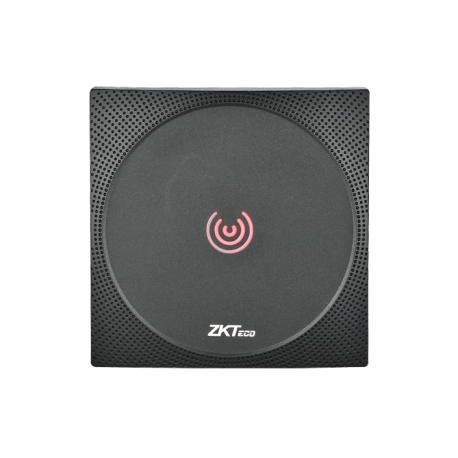

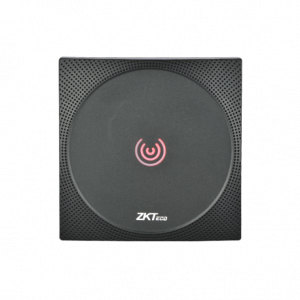

ZKTeco KR601 RFID Reader


ZKTeco KR601 RFID Reader

Wiegand Card Readers
125kHz EM or 13.56MHz IC card reader
Wiegand interface

14,440.82

 KR601

KR600 series is a widely used communication interface in data acquisition and control applications where multiple nodes communicate with each other.

Parameter

Read Range KRxxx-E: Up to 10CM,   KRxxx-M: Up to 5CM
Reading Time ≤300ms
Input Port External LED Control ,  External Buzzer Control
Output Port KRxxx-E: 26bit Wiegand (Default),   KRxxx-M: 34bit Wiegand (Default)
Power/Current DC 6-14V / Max.70mA
LED Red and Green LEDs
Operating Temperature -10°C to +65°C
Material ABS+PC with texture
Operating Humidity 10% to 90% relative humidity   non-condensing
Beeper Yes
Index of Protection• KR600-E/M: IP65  • KR601-E/M: IP65  • KR602-E/M: IP64
