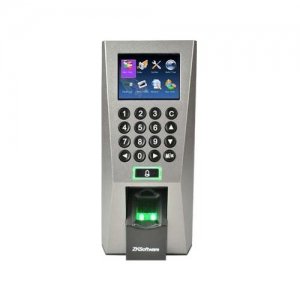

ZKTeco F18-ID Fingerprint Reader


ZKTeco F18-ID Fingerprint Reader

ZKTeco F18-ID Fingerprint Reader is an innovative biometric fingerprint reader for access control application. With high-performance firmware functions and compact design, it has become one of ZKTeco’s most popular devices. It is applied with ZKTeco’s latest firmware with user-friendly UI and flexible user privilege settings for multi-level management.

The new hardware platform uses ZMM210 core-board with 1.2Ghz CPU. With optimization of both hardware platform and firmware, the new f18 is able to verify fingerprints with even higher efficiency. The device offers flexibility of both standalone installation and installation with any third-party access control panels which support standard Wiegand signal. TCP/IP and RS485 are also available which enable F18 to be applied in different network.

120,000.00

Compare

ZKTeco F18-ID Fingerprint Reader

ZKTeco F18-ID Fingerprint Reader Features:

  • Biometric Performance: Reliable, durable and highly accurate ZK fingerprint sensor with latest fingerprint matching algorithm which provides less than 1.5 second user recognition
  • Communication: Weigand output for connecting to access control panel and Ethernet port for fast and reliable network communication
  • Capacity: Can store up to 3,000 templates and 30,000 transactions. The data can be backed up to a USB flash drive and can also be transferred to another reader in the absence of network connectivity
  • Full Access Control Built In: Relay Outputs for electric lock and alarm. Inputs for door status sensor and request to exit hardware. Supports multiple time zones and personnel groups for programming valid entry zones
  • Easy Operation and Management: Works without a computer. Complete setup and programming can be done via the F18-ID’s keypad and embeded firmware. Audio-Visual Indication for acceptance and rejection of valid/invalid fingerprints, cards and passwords.

F18-ID is an indoor-rated standalone fingerprint reader which can be connected either directly to a door lock or any access control panel via Wiegand interface. Works without computer. Complete setup and programming can be done via keypads and embedded firmware. Graphical user interface on a 3.5″ TFT display for rich user experience. Audio-Visual Indication for acceptance and rejection of valid/invalid fingerprints. Relay outputs for electric lock and alarm. Inputs for door status sensor and exit switch. Supports multiple timezones and personnel groups for programming valid entry zones.

The alarm will be triggered when the tamper switch is activated. Weigand output for connecting to access control panel and Ethernet port for fast and reliable communication with the computer. Can store up to 3,000 templates and 30,000 transactions. The data can be backed up to a USB flash drive and can also be transferred to another reader in the absence of computer connectivity.
