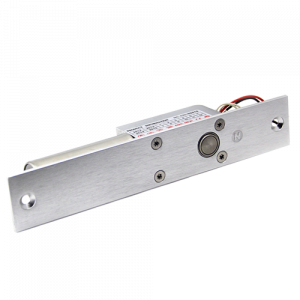

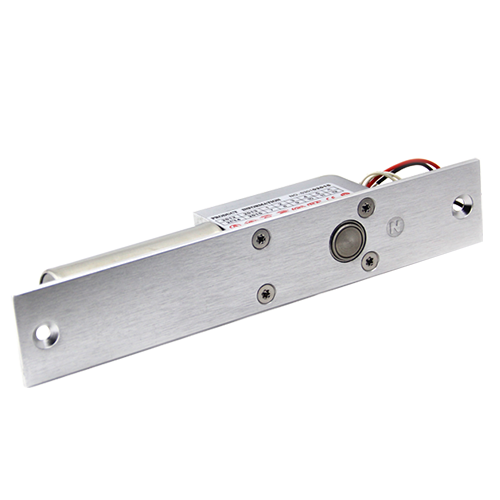

ZKTeco AL-280(LED) Electric Lock


ZKTeco AL-280(LED) Electric Lock

Power-on to lock
• Holding Force: 270kg
• Working Voltage: DC12V/24V input
• Weight: 1.97kg
• Size: 253×25×48mm

175,000.00

Power-on to lock
• Holding Force: 270kg
• Working Voltage: DC12V/24V input
• Weight: 1.97kg
• Size: 253×25×48mm

Function

  • Unfold installation(middle)
  • Power-on to lock
  • No residual magnetism, no mechanical damage, single door
  • Lock status signal NO/NC output, LED display
  • 90 degrees open for all kinds of doors with frame
  • Frameless doors or inswinging door doors can choose accessories
  • Inswing door accessories:AL-280PL and AL-280PZ
  • Frameless glass door accessories:AL-280PU
  • Model: AL-280(LED)

ZKTeco AL-280(LED) Electric Lock Specification

Working VoltageDC12V/24V input
Working Current500mA/250mA
Operating Temperature-10~+55℃(14-131F)
Operating Humidity0-90%
Holding Force270kg
Weight1.97kg
Size253*25*48mm
