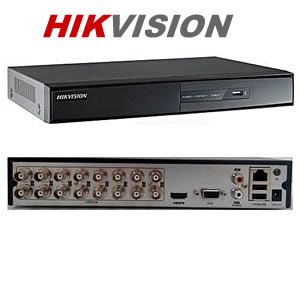

Hikvision (DS-7216HGHI-F1) 16ch Turbo DVR

Hikvision (DS-7216HGHI-F1) 16ch Turbo DVR Specifications

Hikvision (DS-7216HGHI-F1) 16ch Turbo DVR Audio Input:  1-ch

Video Compression:        H.264,H.264+

Analog Video Input:        16-ch

Analog and HD-TVI video input:  1080p25, 1080p30, 720p25, 720p30

IP Video Input:        2-ch (up to 18-ch)

Audio Compression:        G.711u

Two-way Audio:        1-ch RCA(2.0Vp-p, 1kÃ)

Video/Audio Output

HDMI/VGA Output:        1920 Ã 1080 / 60 Hz,1280 Ã 1024 / 60 Hz, 1280 Ã 720 / 60 Hz, 1024 Ã 768 / 60 Hz

Encoding resolution:        When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF

When 1080p lite mode enabled: 1080p lite/HDD 720p lite/WD1/4CIF/VGA/CIF

Frame Rate:        Main stream:

When 1080p lite mode enabled:

1080p lite/HDD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)

When 1080p lite mode not enabled:

For 720p stream access:

720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)

For SD stream access:

WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub-stream:

CIF/QVGA/QCIF@25fps (P)/30fps (N)

Video Bit Rate:        32 Kbps ~ 4 Mbps

Stream Type:        Video/Video&Audio

Audio Output:        1-ch RCA(Linear, 1kÃ)

Audio Bit Rate:        64kbps

Dual Stream:        Support

Synchronous Playback:        16-ch

• Support H.264+/H.264 video compression
• Support HDTVI/AHD/CVI/CVBS/IP video input
• Up to 5/10/18-ch 960p IP camera input for DS-7204/7208/7216HGHI-F1/N
• Max. 1200 m for 720p HDTVI signal

Hikvision (DS-7216HGHI-F1) 16ch Turbo DVR Network management

Remote connections:        128

Network protocols:        TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPÃ, HTTPS

Hard Disk Driver

Interface Type:        1 SATA Interface

Capacity:        Up to 6 TB capacity for each disk

External Interface

USB Interface:        2 USB 2.0 Interfaces

Hikvision (DS-7216HGHI-F1) 16ch Turbo DVR General

Power Supply:        12VDC

Consumption:        Ã 20 W

Working Temperature:        -10 ÃC to +55 ÃC (14 ÃF to 131 ÃF)

Working Humidity:        10% to 90%

Dimensions:        260 Ã 222 Ã 45 mm (10.2 Ã 8.7 Ã 1.8 inch)

Weight:        Ã 1.2 kg (2.6 lb)
