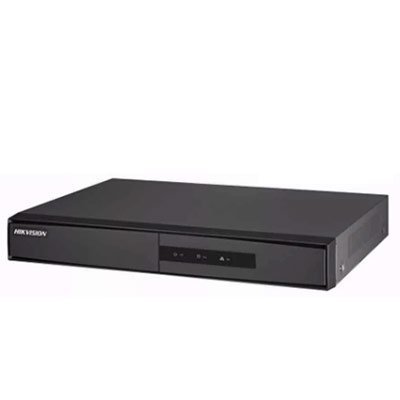

Hikvision DS-7208HGHI-F1 8Ch Turbo HD DVR


Hikvision DS-7208HGHI-F1 8Ch Turbo HD DVR

  • Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
  • Up to 2-ch 1080p IP cameras input
  • Compression and Recording
  • One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
  • Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p

55,000.00

Video/Audio Input Description and Specification
Audio Input:1-ch
Video Compression:H.264,H.264+
Analog Video Input:8-ch
Analog and HD-TVI video input:1080p25, 1080p30, 720p25, 720p30
IP Video Input:2-ch (up to 10-ch)
IP Video Input Resolution:Up to 960p resolution
Audio Compression:G.711u
Two-way Audio:1-ch RCA(2.0Vp-p, 1kΩ)



Video/Audio Output
HDMI/VGA Output:1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Encoding resolution:When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Frame Rate:Main stream:
When 1080p lite mode enabled:
1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
When 1080p lite mode not enabled:

For 720p stream access:
720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
For SD stream access:
WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
CIF/QVGA/QCIF@25fps (P)/30fps (N)

Video Bit Rate:32 Kbps ~ 4 Mbps
Audio Bit Rate:64kbps
Dual Stream:Support
Synchronous Playback:8-ch



Hikvision DS-7208HGHI-F1 8Ch Turbo HD DVR Network management
Remote connections:128
Network protocols:TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS



Hard Disk Driver
Interface Type:1 SATA Interface
Capacity:Up to 6 TB capacity for each disk



Hikvision DS-7208HGHI-F1 8Ch Turbo HD DVR  External Interface
Network Interface:1; 10M / 100M self-adaptive Ethernet interface
USB Interface:2 USB 2.0 Interfaces



Hikvision DS-7208HGHI-F1 8Ch Turbo HD DVR General
Power Supply:12 VDC
Consumption:≤ 12 W
Working Temperature:-10 ºC to +55 ºC (14 ºF to 131 ºF)
Working Humidity:10% to 90%
Dimensions:260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight:≤ 1 kg (2.2 lb)
