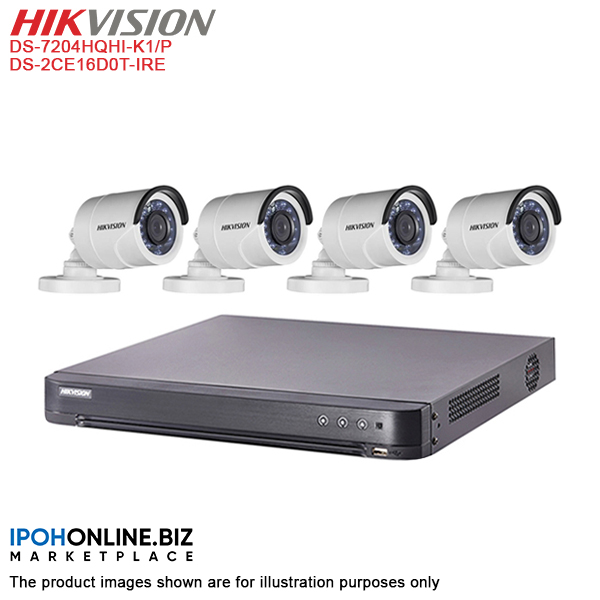

Hikvision DS-7204HQHI-K1 4CH Turbo HD DVR

(1 customer review)
Availability:

Out of stock


Hikvision DS-7204HQHI-K1 4CH Turbo HD DVR

• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input

• Connectable to H.265+/H.265/H.264+/H.264 IP cameras

• Up to 4MP lite resolution for recording

HDMI output at up to 4K (3840 × 2160) resolution for DS-7216HQHI-K1

• Long distance transmission over UTP and coaxial cable

• 4/8/16-ch synchronous playback

65,000.00

Out of stock

Compare

Hikvision DS-7204HQHI-K1 4CH Turbo HD DVR SPECIFICATION

Video/Audio Input
Audio Input: 1-ch
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input: 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
Note: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.
Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30,CVI input:4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input
Video Input Interface: BNC (1.0 Vp-p, 75Ω)
Audio Compression: G.711u
Audio Input Interface: RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)



Hikvision DS-7204HQHI-K1 4CH Turbo HD DVR Video/Audio Output
HDMI/VGA Output: 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution: 1080p Lite mode enabled:
4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate: Mainstream:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps
(P)/30fps (N)
3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate: 32 Kbps-6 Mbps
Stream Type: Video/Video&Audio
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output: 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Dual Stream: Support
Synchronous Playback: 4-ch



Hikvision DS-7204HQHI-K1 4CH Turbo HD DVR Network management
Remote connections: 32
Network protocols: TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF



Hard Disk Driver
Interface Type: 1 SATA Interface
Capacity: Up to 10 TB capacity for each disk



External Interface
Network Interface: 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: 2 USB 2.0 Interfaces
Serial Interface: 1; standard RS-485 serial interface, half-duplex



Hikvision DS-7204HQHI-K1 4CH Turbo HD DVR General
Power Supply: 12V DC
Consumption: ≤ 6W(without hard disks)
Working Temperature: -10 o C to +55 o C (14 oF to 131 oF)
Working Humidity: 10% to 90%
Dimensions: 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight: ≤ 1.16 kg (2.6 lb)
