Hikvision, Hikvision Turbo HD DVR
Hikvision DS-7116HGHI-M1 16ch DVR
Availability:
Out of stock

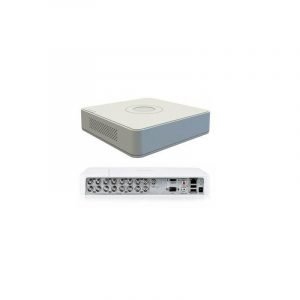

Hikvision DS-7116HGHI-F1 16ch DVR
- 16 channels and 1 HDD mini size DVR
- H.264+ / H.264 video compression
- Encoding ability up to 1080p lite @ 25/30 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 18 network cameras can be connected
₦71,000.00
Out of stock
Hikvision DS-7116HGHI-F1 16 Channel Turbo HD DVR supports Turbo HD Camera up to 16. The Hikvision DS-7116HGHI-F1 16CH has interface type of 1 SATA with video compression technology up to H.264+
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 1-ch | |
| Video Compression: | H.264,H.264+ | |
| Analog and HD-TVI video input: | 16-ch BNC interface (1.0Vp-p, 75 Ω) | |
| Supported camera types: | Support HDTVI input: 1080p/25Hz, 1080p/30Hz, 720P/25Hz, 720P/30Hz, Support AHD input: 720P/25Hz, 720P/30Hz, support CVBS input |
|
| Audio Compression: | G.711u | |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) | |
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| Recording resolution: | When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF |
|
| Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps ~ 4 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Playback Resolution: | 1080p lite/720p/WD1/4CIF/VGA/CIF | |
| Synchronous Playback: | 16-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 1 SATA Interface | |
| Capacity: | Up to 6 TB capacity for each disk | |
| Hikvision DS-7116HGHI-F1 16ch DVR External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface | |
| USB Interface: | 2 USB 2.0 Interfaces | |
| Hikvision DS-7116HGHI-F1 16ch DVR General | ||
|---|---|---|
| Power Supply: | 12V DC | |
| Consumption: | ≤20W(without hard disks) | |
| Working Temperature: | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) | |
| Working Humidity: | 10% ~ 90% | |
| Dimensions: | 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch) | |
| Weight: | ≤ 1.2 kg / 2.6 lb(without hard disks) | |
