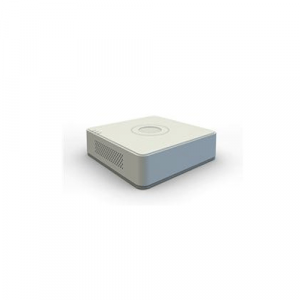

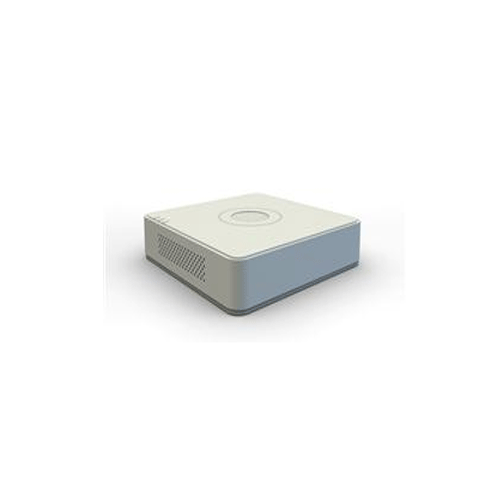

Hikvision DS-7104HGHI-F1 4CH 720P DVR


Hikvision DS-7104HGHI-F1 4CH 720P DVR

  • 4 channels and 1 HDD mini size DVR
  • H.264+ / H.264 video compression
  • Encoding ability up to 1080p lite @ 25/30 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 5 network cameras can be connected;


Hikvision Turbo HD DVR (DS-7104HGHI-F1), a 4- channel DVR that allows for connection of 4 cameras. This smart CCTV solution is a comprehensive Turbo HD system dedicated to security . It protects home, office, property’s security and assets, and prevents owner’s any loss or internal theft. This Hikvision DS- 7104HGHI-F1 DVR uses a video compression technology  of H.264 and H.264+.

Video/Audio Input
Audio Input:1-ch
Video Compression:H.264,H.264+
Analog Video Input:4-ch
Analog and HD-TVI video input:4-ch,BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
IP Video Input:1-ch (up to 5-ch)
IP Video Input Resolution:Up to 2 MP resolution
Audio Compression:G.711u
Two-way Audio:1-ch RCA(2.0Vp-p, 1kΩ)


Video/Audio Output
HDMI/VGA Output:1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Encoding resolution:When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame Rate:Main stream:
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N)
Video Bit Rate:32 Kbps ~ 4 Mbps
Stream Type:Video/Video&Audio
Audio Output:1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:64kbps
Dual Stream:Support
Synchronous Playback:4-ch


Hikvision DS-7104HGHI-F1 4CH 720P DVR Network management
Remote connections:32
Network protocols:TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS


Hard Disk Driver
Interface Type:1 SATA Interface
Capacity:Up to 6 TB capacity for each disk


Hikvision DS-7104HGHI-F1 4CH 720P DVR External Interface
Network Interface:1; 10M / 100M self-adaptive Ethernet interface
USB Interface:2 USB 2.0 Interfaces


Hikvision DS-7104HGHI-F1 4CH 720P DVR General
Power Supply:12 VDC
Consumption:≤ 8 W
Working Temperature:-10 ºC to +55 ºC (14 ºF to 131 ºF)
Working Humidity:10% to 90%
Dimensions:200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight:≤ 0.8 kg (1.8 lb
