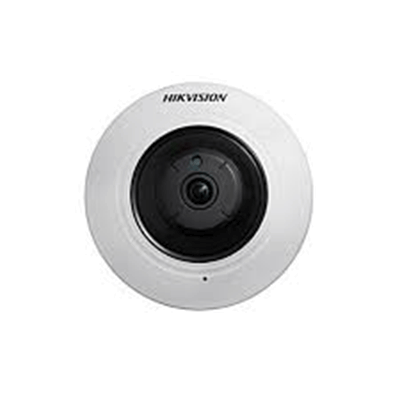

Hikvision DS-2CD2942F-IWS 4MP Fish Eye Camera with Audio


Hikvision DS-2CD2942F-IWS 4MP Fish Eye Camera with Audio

1/3” Progressive Scan CMOS

l  Up to 4 megapixel resolution

l  Fisheye & PTZ view

l  3D DNR

l  -I: IR range approx. 8 meters

l  -W: Support Wi-Fi, support WPS configuration with one touch

l  -S: audio & alarm I/O

l  Support 128G on-board storage

l  12 VDC ± 10% / PoE



Hikvision DS-2CD2942F-IWS 4MP Fish Eye Camera with Audio

Camera
Image Sensor:1/3″ Progressive Scan CMOS
Min. Illumination:Color: 0.01lux @(F1.2, AGC ON), 0.018lux @(F1.6, AGC ON), 0 lux with IR
Shutter time:1/3 s ~ 1/100,000 s
Slow shutter:Support
Lens:1.6mm, F1.6 Angle of view: 186°(horizontal), 106°(vertical)
Lens Mount:M12
Day& Night:Electronic (-I: IR cut filter with auto switch)



Compression Standard
Video Compression:H.264/MJPEG
H.264 code profile:Baseline Profile / Main Profile
Video bit rate:32Kbps~8Mbps
Audio Compression:G.711/G.722.1/G.726/MP2L2
Audio bit rate:64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)



Hikvision DS-2CD2942F-IWS 4MP Fish Eye Camera with Audio Image
Max. Image Resolution:2560 × 1440
Frame Rate:50Hz: 12.5fps(2560 × 1440), 25fps(1920 × 1080, 1280 × 720)
60Hz: 15fps(2560 × 1440), 30fps(1920 × 1080, 1280 × 720)
Image Enhancement:BLC/3D DNR/ROI/Defog
Image Settings:Saturation, Brightness, Contrast , Hue, Sharpness, AGC, White Balance
Day/Night Switch:Auto/Schedule/Triggered by Alarm In



Hikvision DS-2CD2942F-IWS 4MP Fish Eye Camera with Audio Network
Network Storage:Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS)
Alarm Trigger:Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols:TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:User Authentication, Watermark, IP address filtering
System Compatibility:ONVIF (Profile S, Profile G), ISAPI



Hikvision DS-2CD2942F-IWS 4MP Fish Eye Camera with Audio Wi-Fi Specification (-W)
Wireless Standards:IEEE802.11b, 802.11g, 802.11n
Frequency Range:2.4 GHz ~ 2.4835 GHz
Channel Bandwidth:20/40MHz Support
Modulation Mode:802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Security:64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Power:11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBm
Receive Sensitivity:11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical)
Transmission Rate:11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps
Wireless Range:50m(depend on environment)



Hikvision DS-2CD2942F-IWS 4MP Fish Eye Camera with Audio General
Operating Conditions:-10 °C ~ 40 °C (14 °F ~ 104 °F)
Humidity 90% or less (non-condensing)
Power Supply:12 VDC ± 10%, PoE (802.3af)
Power Consumption:Max. 5.55 W
IR Range:-I: 8m
Dimensions:?119.9 x 41.2(?4.72” × 1.62”)
Weight:600 g (1.32 lbs)
NOTE::“-W” series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support
the 802.1X protocol.
