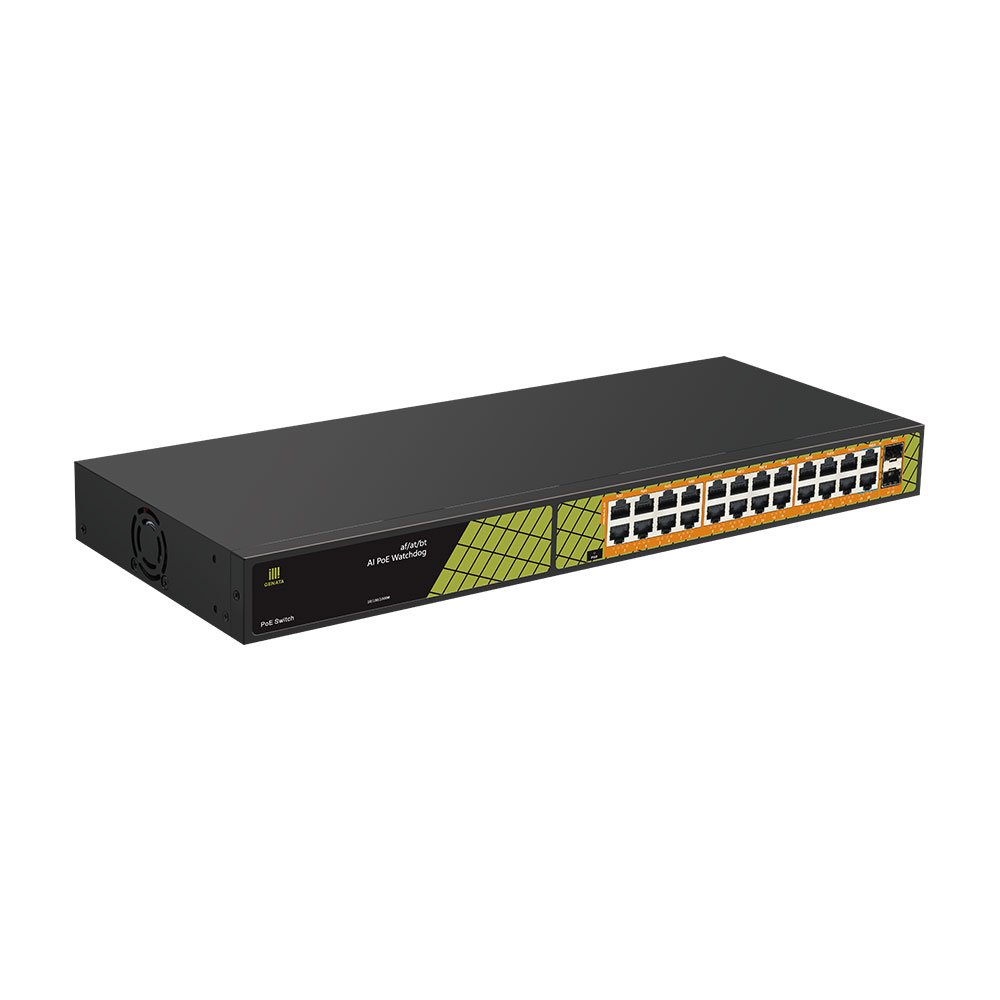

Genata GNT-P1026G6 24Port PoE GB switch
The Genata GNT-P1026G6 24Port PoE GB switch is a 24port gigabyte fast(PoE), and 2SF port making it an AI 24port POE Switch. This device is capable of transmitting power and data signals over a distance of up to 130 meters. It features the new AI Watchdog PoE, which automatically detects the power receiving port, finds a dead device, and restarts the device after power failure. It also complies with IEEE 802.3af / at/bt standard, single-port MAX output power is 60W.
Also, Genata GNT-P1026G6 24Port PoE Gigabyte switch that houses a 24-gigabyte port with a transmission speed of 1/100/1000Mbps, a 6KV Lightning protection,8KV electro-static protection, Short-circuit protection, Over-Temperature protection that helps in Preventing the device from surge.
Ports: 2*1000Mbps SFP Port+4*1000Mbps PoE ports(Compatible uplink)+20*1000Mbps PoE ports
Transmission Rate: 2000Mbps Full Duplex; 10 or 100 or 1000Mbps Half Duplex
Transmission Distance: 0-130m
Network Latency (10 to 1000Mbps): ≦16μs (use the 64byte package size)
MAC address table: 8K
The Frame Filter & Transmission Rate: 14800pps the most for 10M port, 148800pps the most for 100M port,1488000pps the most for 1000M port
Networking Standard: IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX/ IEEE 802.3ab 1000BASE-T, IEEE 802.3xFlowControl, IEEE 802.3af/at/bt Power over Ethernet
Power input: AC 110~240V; PoE powered by Total≤60W PoE Watchdog
Lightning Protection:6KV, Per: IEC61000-4-5
ESD Protection:8KV, Per: IEC61000-4-2
Warranty Whole machine: 1 Year
Package Content: Installation ManualPorts
With the Genata brand of switches extending the transmission distance of your CCTV cameras has never been easier, just link it up to your NVR and add your cameras.
