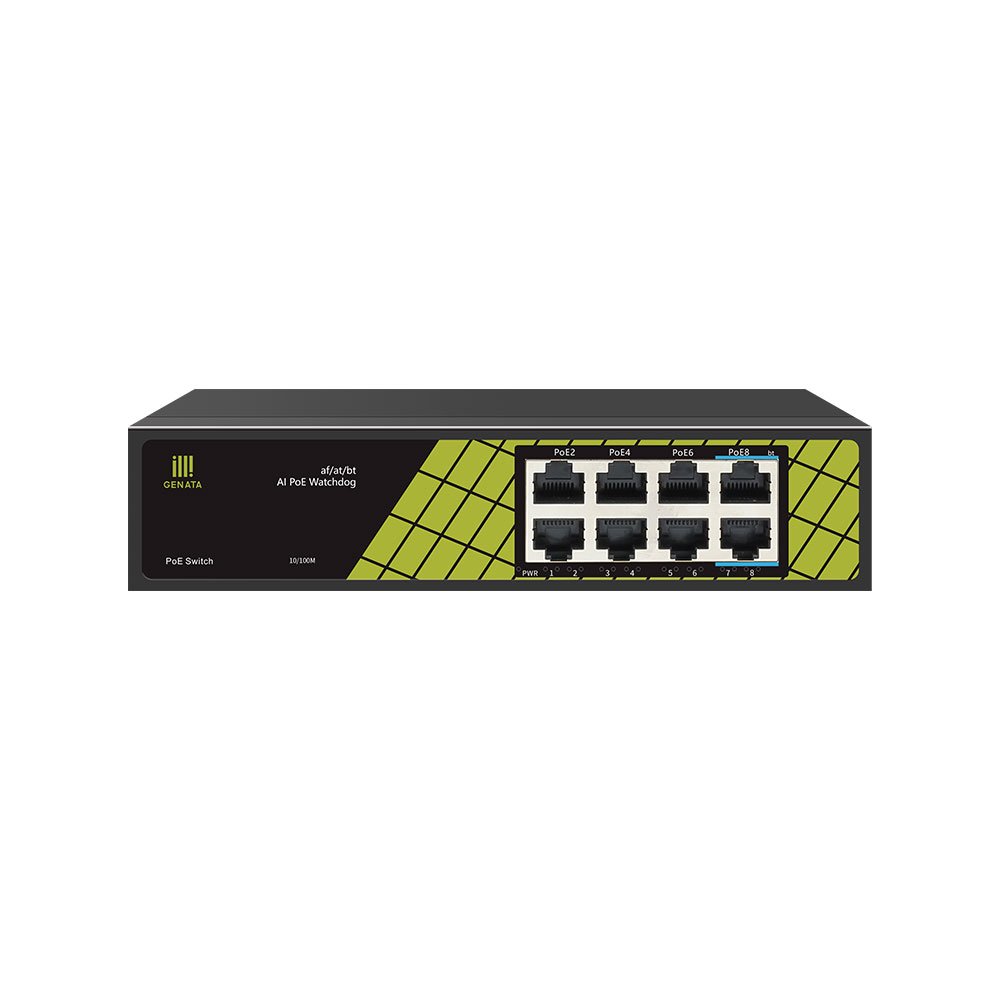

Genata-P9808V6 8Port POE Switch


Genata-P9808V6 8Port POE Switch

The Genata GNT-P9808V6 8Port POE Unmanaged Switch is an 8port fast (PoE) AI PoE Switch, capable of transmitting power and data signals over a distance of up to 130 meters. Featuring the new AI Watchdog PoE, which automatically detects the power receiving port, finds a dead device, and restarts the device after power failure.

25,000.00

Genata-P9808V6 8Port POE Switch

The Genata GNT-P9808V6 8Port POE Unmanaged Switch is an 8port fast (PoE) AI PoE Switch, capable of transmitting power and data signals over a distance of up to 130 meters. Featuring the new AI Watchdog PoE, which automatically detects the power receiving port, finds a dead device, and restarts the device after power failure. It also complies with IEEE 802.3af / at/bt standard, single-port MAX output power is 60W. Lastly, the Genata GNT-P9808V6 8Port POE Unmanaged Switch houses a 6KV Lightning protection, 8KV electro-static protection, Short-circuit protection, Over-Temperature protection that helps in preventing the device from surge.

Features

Model: GNT-P9808V6

Ports: 8X10/100Mbps uplink ports (RJ45)

Transmission Rate: 2000Mbps Full-Duplex; 10 or 100 or 1000Mbps Half Duplex

Max transmission distance: 130m

Power support: AC 110~220V Total≤120Wk

PoE Watchdog: Port 1-8

Power output: PoE1~6Port:1/2(+52V),3/6(GND)≤30W

PoE7~8Port:1245(+53V),3678(GND) compatible1/2(+52V),3/6(GND)≤60W

Performance Specification: Bandwidth: 1.6 GbpsNetwork Latency (10 to 1000Mbps): ≦16μs (use the 64byte package size)MAC address table: 2KThe Frame Filter & Transmission Rate: 14800pps the most for 10M port, 148800pps the most for 100M port,1488000pps the most for 1000M port.

Protection Level: Lightning Protection:6KV, Per: IEC61000-4-5, ESD Protection:8KV, Per: IEC61000-4-2

Physical Specifications: Size(L*W*H); 187mm*139mm*43mm

Working Environment: Operating Temperature: -30℃ ~60℃Storage Temperature: -40℃ ~70℃Operating Humidity: 10%~90% non-condensing storage Humidity: 5%~90% non-condensing

Warranty: Whole machine: 1 Year

Package Content: AC Power Cable, Installation Manual

With the Genata brand of switches extending the transmission distance of your CCTV cameras has never been easier, just link it up to your NVR and add your cameras.
