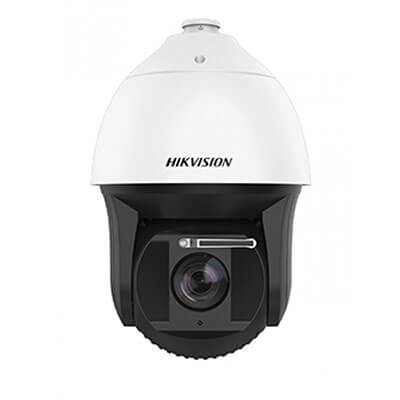

DS-2DF8436-AEL(W) 8MP 36X Network Dome Camera


DS-2DF8436-AEL(W) 8MP 36X Network Dome Camera

  • 2/3” HD CMOS sensor

• Up to 4096 × 2160 resolution

• 36X Optical Zoom

• Min. Illumination:

Color: 0.005 Lux @(F1.5, AGC ON)

B/W: 0.0005 Lux @(F1.5, AGC ON)

0 Lux with IR

• Smart Tracking

• Smart Detection

• 200m IR distance

• Optional wiper(-W)

• Hi-PoE / 24VAC power supply

• Support H.265+/H.265 video compression

• Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection

• Rapid focus

• IP67, IK10

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • 36x optical zoom provides close up views over expansive areas
  • Intelligent functions based on deep learning
  • Capturing every point fast, even during critical events.

32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

629,640.00

DS-2DF8436-AEL(W) 8MP 36X Network Dome Camera
Image Sensor:2/3″ progressive scan CMOS
Effective Pixels:4096×2160
Signal System:PAL/NTSC
Minimum Illumination:Color: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.0005 Lux @(F1.5, AGC ON)
0 Lux with IR
AGC:Auto/Manual
BLC:ON/OFF
HLC:Support
Smart defog:Support
WDR:DWDR
Shutter Time:50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day& Night:ICR
Digital Zoom:16X
Privacy Mask:24 programmable privacy masks
Auto Focus:Auto / Semi-automatic / Manual



DS-2DF8436-AEL(W) 8MP 36X Network Dome Camera Lens
Focal Length:7.5 mm to 270 mm, 36× Optical
Zoom Speed:Approx. 7.8 s (optical lens, wide-tele)
Field of View:Horizontal field of view: 56.1° to 2.0° (wide-tele)
Vertical field of view: 33.4° to 1.1° (wide-tele)
Diagonal field of view: 62.9° to 2.3° (wide-tele)
Minimum Working Distance:10-1500mm(Wide-Tele)
Aperture Range:F1.5~F4.5



DS-2DF8436-AEL(W) 8MP 36X Network Dome Camera Pan & Tilt
Pan Range:360°endless
Pan Speed:Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s
Tilt Range:-20°~90°(Auto Flip)
Tilt Speed:Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s
Proportional Zoom:Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:300
Patrol:8 patrols, up to 32 presets per patrol
Pattern:4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory:Support
Park Action:Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display:ON/OFF
Smart-tracking:Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Wiper:Optional



Infrared
IR Distance:200m
IR irradiation angle:Adjustable by zoom



DS-2DF8436-AEL(W) 8MP 36X Network Dome Camera Alarm
Alarm Input:7 Inputs
Alarm Output:2
Alarm Actions:Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel



Network
Ethernet:10Base -T, /100Base-TX, RJ45 Connector
Sub Stream:50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)
Third Stream:50Hz: 25fps(704×576, 640×480, 352×288);
60Hz: 30fps(704×480, 640×480, 352×240)
Video Compression:Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
ROI encoding:Eight fixed region for each stream
Audio Compression:G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Mode:OFF/Audio input/Audio output
Protocols:IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users:Up to 20 users
Three-Stream:Support
Mini SD Card:Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures:User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering



DS-2DF8436-AEL(W) 8MP 36X Network Dome Camera Client GUI
Camera Control:Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display:Time: Week: Date, 6 formats on the Client
Client:Support iVMS-4200
Web Browser:IE 7+, Chrome 18 – 42, Firefox 5.0 +, Safari 5.02 +



DS-2DF8436-AEL(W) 8MP 36X Network Dome Camera General
RS-485 Protocols:HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power Supply:24 VAC & Hi-PoE
Power Consumption:24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater)
Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater)
Working Temperature/Humidity:-40°C to 70°C (-40°F to 158°F)
Protection Level:IP67 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions:Φ 266.6 mm × 410 mm (Φ 10.50″ × 16.14″)
Weight (approx.):8kg (approx.17.64lb)
