Technical Speci?cation |

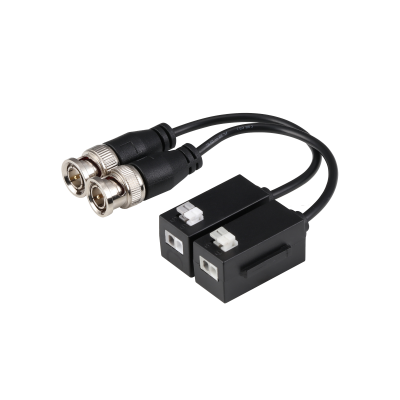

Model | DH-PFM800-4K |
Properties |
Transmission Signal | 1-CH |
Network cable Type | UTP CAT5E/6 (material: CU) |
Transmission Properties | HDCVI | 720P : max.400m(1312.34ft) | 1080P : max.250m(820.21ft) | 4M/6M/4K : max.200m(656.17ft) |
TVI | 720P : max.400m(1312.34ft) | 1080P : max.250m(820.21ft) | 4M/5M : max.200m(656.17ft) |
AHD | 720P : max.400m(1312.34ft) | 1080P : max.250m(820.21ft) | 4M/5M : max.200m(656.17ft) |
Video Transmission Properties |
Coaxial Video Connector | BNC-M |
Connection Way | RJ45 |
Compatible Format | HDCVI/TVI/AHD/CVBS |
Resolution | 720P/1080P/4MP/5MP/4K |
Protection |
ESD | 1a contact discharge electricity level 3 |
1b air discharge electricity level 3 |
Per: IEC61000-4-2 |
UTP Cable Connector | 2KV(different-mode), 4KV(common-mode) |
Per: IEC61000-4-5 |
Impedance |
BNC Male Impedance | 75 ohms |
UTP Cable Impedance | 100 ohms |
Physical Properties |
Weight | 40g (0.09lb) (1 pair) |
Dimension(LxWxH) | 173.8mmx19.5mmx21mm (6.84?x0.77?x0.83?) |
Shell | ABS |
Color | Black |
Environmental |
Operating Temperature | -30?~+70?(-22?~+158?) |
Operating Humidity | <95% RH |
Storage Temperature | -40?~+80?(-40?~+176?) |
