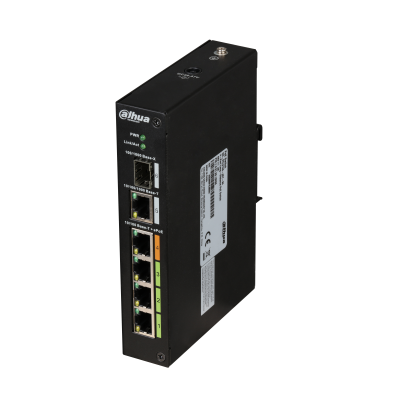

DAHUA PFL2106-4ET-96

Dahua

39,000.00

Technical Speci?cation
Model DH-PFL2106-4ET-96
Ethernet Port 1*100/1000 Base-X1*10/100/1000 Base-T4*10/100 Base-T(PoE power supply)
PoE Power Consumption Port1,2,3?30W, Port4?60W, Total?96W
PoE Protocol IEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity 6.8Gbps
Packet Forwarding Rate 3.57Mpps
Packet Buffer Memory 1Mb
MAC Table Size 8K
Flow Control Enable by default
Application Humidity 10%~90%
Power DC48~57V power adapter
Lightning Protection Common Mode 4KVDifferential Mode 2KV
Working Temperature ?30?C~65?C
Weight 480g
Dimension(W?D?H) 150mm?100mm?30mm
Transmission Performance:
Cable (m) Bandwidth (Mbps) PoE Load Capacity (W) Hi-PoE Load Capacity (W) Working Mode
100 100 25.5 53 IEEE/E100
200 100 25.5 33 E100
300 100 19 19 E100
400 10 17 17 E10
500 10 13 13 E10
800 10 7 7 E10
ePoE switch supply voltage 48VCAT5E/CAT6, max. DC resistance < 10?/100m
Cable (m) Bandwidth (Mbps) PoE Load Capacity (W) Hi-PoE Load Capacity (W) Working Mode
100 100 25.5 53 IEEE/E100
200 100 25.5 47 E100
300 100 25.5 32 E100
400 10 23 26 E10
500 10 20 20 E10
800 10 13 13 E10
ePoE switch supply voltage 53VCAT5E/CAT6, max. DC resistance < 10?/100m
