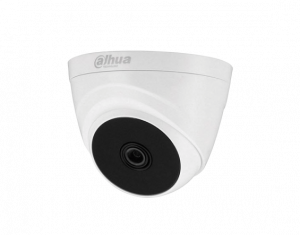

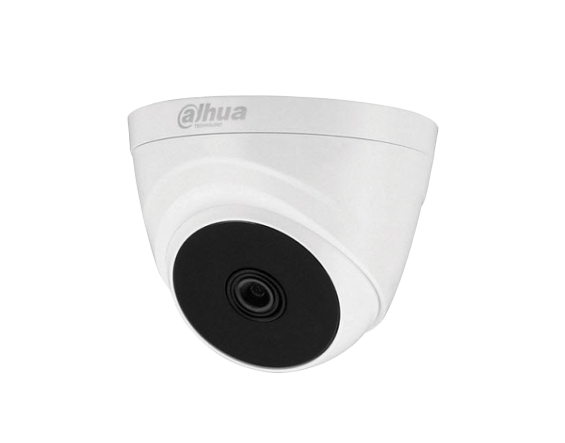

Dahua DH-HAC-T1A21P 2MP HDCVI IR Eyeball Camera

Dahua

Dahua DH-HAC-T1A21P 2MP HDCVI IR Eyeball Camera

HAC-T1A21

2MP HDCVI IR Eyeball Camera

> Max. 30fps@1080P

> HD and SD output switchable
> 3.6mm fixed lens (2.8mm, 6mm optional)
> Max. IR length 20m, Smart IR
> DC12V

7,500.00

Dahua DH-HAC-T1A21P 2MP HDCVI IR Eyeball Camera

HAC-T1A21

2MP HDCVI IR Eyeball Camera

> Max. 30fps@1080P

> HD and SD output switchable
> 3.6mm fixed lens (2.8mm, 6mm optional)
> Max. IR length 20m, Smart IR
> DC12V

Dahua DH-HAC-T1A21P 2MP HDCVI IR Eyeball Camera

Camera

Dahua DH-HAC-T1A21P 2MP HDCVI IR Eyeball Camera

Image Sensor

1/2.7″ CMOS
Effective Pixels1920(H)×1080(V), 2MP
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination0.04Lux/F1.85, 30IRE, 0Lux IR on
S/N RatioMore than 65dB
Dahua DH-HAC-T1A21P 2MP HDCVI IR Eyeball Camera

IR Distance

Up to 20m (66feet)
IR On/Off ControlAuto / Manual
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length3.6mm (2.8mm, 6mm Optional)
Max ApertureF1.85
Angle of ViewH: 93° (103°, 54.7°)
Focus ControlN/A
Close Focus Distance800mm (500mm, 2000mm)

31.50” (19.69″, 78.74”)

Pan / Tilt / Rotation
Dahua DH-HAC-T1A21P 2MP HDCVI IR Eyeball Camera Pan/Tilt/RotationPan: 0° ~ 360°

Tilt: 0° ~ 78°

Rotation: 0° ~ 360°

Video
Resolution1080P (1920×1080)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P
Video Output1-channel BNC high definition video output / CVBS video output (Can switch)
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / DWDR
WDRDWDR
Gain ControlAGC
Noise Reduction2D
White BalanceAuto / Manual
Smart IRAuto / Manual
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy

to pinpoint the right camera for your needs. The DORI distance is calculated

based on sensor specification and lab test result according to EN 62676-4

which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance
Detect25px/m

(8px/ft)

2.8mm: 37m(121ft)

3.6mm: 51m(167ft)

6mm: 80m(262ft)

Observe63px/m

(19px/ft)

2.8mm: 15m(49ft)

3.6mm: 20m(66ft)

6mm: 32m(105ft)

Recognize125px/m

(38px/ft)

2.8mm: 8m(26ft)

3.6mm: 10m(33ft)

6mm: 16m(51ft)

Identify250ppm

(76px/ft)

2.8mm: 4m(14ft)

3.6mm: 5m(17ft)

6mm: 8m(26ft)

Certifications
CertificationsCE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

Interface
Audio InterfaceN/A
Eelectrical
Power Supply12V DC ±30%
Power ConsumptionMax. 2.3W (12V DC, IR on)
Environmental
Operating Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal ResistanceNA
Construction
CasingPlastic
Dimensions85mm×85mm×69mm(3.35″×3.35″×2.72″)
Net Weight0.09kg (0.20lb)
Gross Weight0.13kg (0.27lb)
