ZKTeco ZK8500R Fingerprint Sensor


ZKTeco ZK8500R Fingerprint Sensor

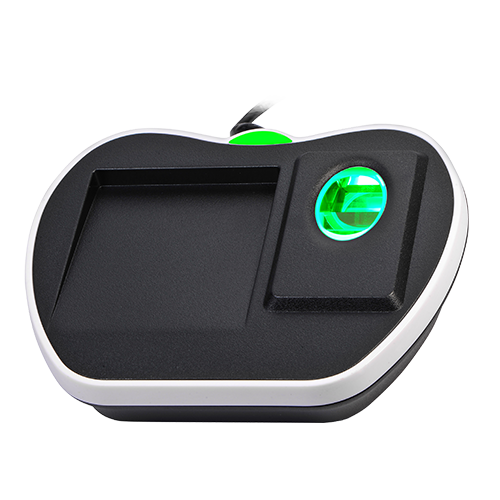

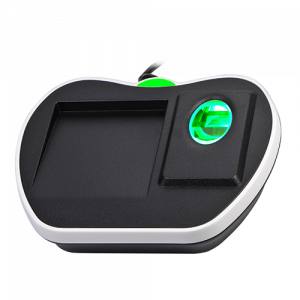

ZK8500R is a USB fingerprint scanner and card issue device that provides a simple and efficient way to register user fingerprints and card numbers with ZKTeco Software. This device can capture fingerprint image or read card serial number (ID/Mifare) directly and upload to the system by USB interface. ZK8500R would save money as it can work as ZK4500+CR10E+CR10M, and also can save time, especially when a high volume of users will be using ZKTeco systems on site.

25,802.75

ZKTeco ZK8500R Fingerprint Sensor Parameter

Model NameZK8500R
MaterialOptical
CPU120MHz DSP
Flash16 KB
SoCRTOS
Image Quality0.3 million pixels CMOS
Sunlight OperationWhite filed, General Sunlight
Water SplashYES
Card Reader125KHz EM & 13.56MHz Mifare
Operating SystemWindows2000/XP/2003/Vista/7/8(32/64bit)
LEDGreen
Power Voltage5V (USB)
Power Current300mA
CommunicationUSB 2.0 / USB1.1 / USB1.0
Interface SocketUSB Type A
Image Resolution500 dpi
Effective Collecting Area13.24 * 15.7 mm
Collecting Area15.4*18 mm
Image Size280*360 pixel
Dimension124.5 * 102 * 34mm (L*W*H)
Gray Level256
Weight0.27kg
Operating Environment-20 °C ~ +50 °C; 90% r.h.
