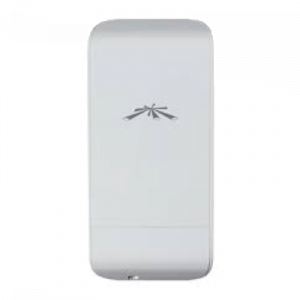

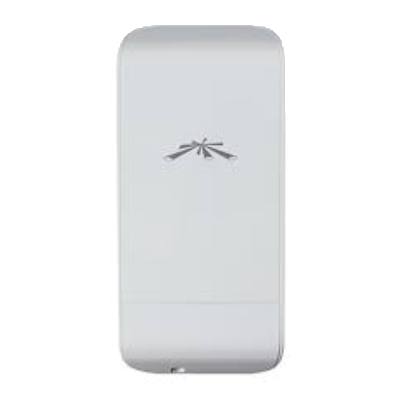

Ubiquiti NanoStation Loco M5 5GHz Indoor/Outdoor


  • 150+ Mbps of Ubiquiti NanoStation Loco M5 real outdoor throughput
  • 15km+ range
  • Ubiquiti NanoStation Loco M5 Intelligent POE
  • Ubiquiti NanoStation Loco M5 is Cost-effective

32,000.00

Ubiquiti NanoStation LOCO M5
Dimensions 161 x 31 x 80 mm (6.31 x 1.22 x 3.15″)
Weight 180 g (6.35 oz)
Power Supply (PoE) 24V, 0.5A
Max. Power Consumption 5.5W 5.5W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency Worldwide: 5170-5875 MHz
US: 5725-5850 MHz
USA DFS: 5250-5850 MHz
Gain 13 dBi
Networking Interface (1) 10/100 Ethernet Port
Processor Specs Atheros MIPS 24Kc, 400 MHz
Memory 64 MB DDR2, 8 MB Flash
Frequency 5 GHz
Cross-pol Isolation 20 dB Minimum
Max. VSWR 1.4:1
Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount (Kit Included)
Operating Temperature -30 to 75° C (-22 to 167° F)
Operating Humidity 5 to 95% Noncondensing
Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance Yes
Shock & Vibration ETSI300-019-1.4
  • 150+ Mbps real outdoor throughput
  • 15km+ range
  • Intelligent POE
  • 13 dBi Antenna
  • Compact
  • Cost-effective

Ubiquiti NanoStation Loco M5 Indoor/Outdoor airMAX® CPE Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
