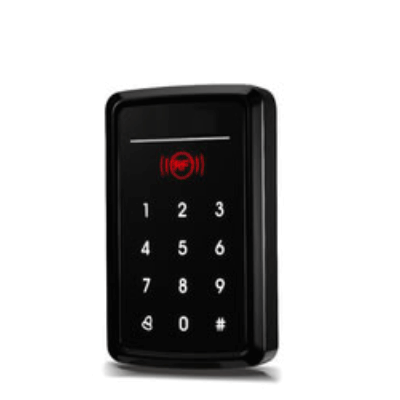

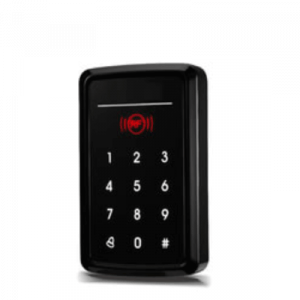

Touch Button Single Door Access Control CSS-T20

Dahua

1.  Touch button, lightweight, durable;
2. Opening mode: card, password, card + password;
3. A group of door open button interface; a doorbell interface;
4. A group of relay dry contact signal output, a set of PUSH ( low level ) output;

FEATURE:

One type of card and password touch access control machine, simple to use, reliable performance, mainly for the following functions:
1.  Touch button, lightweight, durable;
2. Opening mode: card, password, card + password;
3. A group of door open button interface; a doorbell interface;
4. A group of relay dry contact signal output , a set of PUSH ( low level ) output;
5. A group of WG26 interface, can connect one card reader; or set to WG26 output, the machine use for  the card reader;
6. Normally open, normally closed, automatic three backlight  pattern;
7. With anti-demolition functions and safe operation mode;
8. Size: 120mm�78mm�22mm
9. Weight: 130g

SPECIFICATION:

ItemProjectIndex
1Working VoltageDC 12V�10%
2Working Current< 100mA
3Size120mm�78mm�22mm
4Weight130g
5Working Temperature0℃�70℃
6Relative Temperature20%�80%
7User Capacity1000 Cards
8Card TypeEM Card / Mifare1 Card
9Card Reading DistanceEM:1-15CM,  MF1: 1-7CM
10Signal Output1 relay and 1  low level
