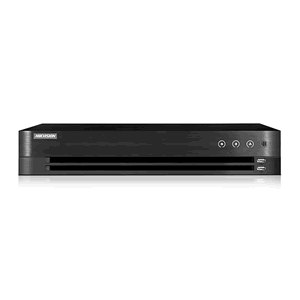

Hikvision (DS-7732NI-Q4/16P) 32Ch 8MP NVR

Hikvision (DS-7732NI-Q4/16P) 32Ch 8MP NVR

Recording resolution up to 8 megapixels
Supports cameras from other manufacturers
Managing disk quotas
HDMI and VGA output with a resolution of up to 1920x1080p
2 USB2.0, USB3.0 1

8/16/32-ch network cameras can be connected with
80M/160M/160M incoming bandwidth
• Plug & Play with up to 16 independent PoE network
• Support network detection, including network delay,
packet loss, etc


Hikvision (DS-7732NI-Q4/16P) 32Ch 8MP NVR

  • Hikvision (DS-7732NI-Q4/16P) 32Ch 8MP NVR H.265+/H.265/H.264/H.264+ video formats
  • Connectable to the third-party network cameras
  • Up to 8-ch IP camera input for DS-7708NI-Q4/8P, and 16/32-ch IP camera input for DS-7716/7732NI-Q4/16P
  • Recording at up to 8 MP resolution
  • Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
  • HDMI/VGA independent output (DS-7708NI-Q4/8P and DS-7716NI-Q4/16P)
  • HDMI and VGA simultaneous outputs (DS-7732NI-Q4/16P)
  • HDMI Video output at up to 4K (3840 Ã 2160) resolution (DS-7708NI-Q4/8P and DS-7716NI-Q4/16P)
  • 4 SATA interfaces connectable for recording and backup
  • H.265+ compression effectively reduces the storage space and costs by up to 75%
  • 1 self-adaptive 10/100/1000 Mbps network interface
  • 8/16 independent PoE network interfaces are provided
  • Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
  • Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
  • VCA detection alarm is supported
  • Instant playback for assigned channel during multi-channel display mode
  • Smart search for the selected area in the video; and smart playback to improve the playback efficiency
  • Hik-Connect for easy network management

Video/Audio Input

Two-way audio input:        1-ch, RCA (2.0 Vp-p, 1kÃ)

IP video input:        32-ch

IP Video input:        Up to 8 MP resolution


Incoming bandwidth:        200Mbps

Video/Audio Output

HDMI Output:        1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Recording Resolution:        8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback:        16-ch

VGA Output:        1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Hikvision (DS-7732NI-Q4/16P) 32Ch 8MP NVR Decoding

Decoding format:        H.265/H.265+/H.264/H.264+/MPEG4

Capability:        1-ch @ 8 MP / 4-ch @ 1080p

Live view / Playback:        8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Hard Disk

Interface Type:        4 SATA interfaces

Capacity:        Up to 6TB capacity for each HDD

Hikvision (DS-7732NI-Q4/16P) 32Ch 8MP NVR External Interface

Network Interface:        1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface

Serial Interface:        RS-232; RS-485;


Interface:        24 independent 10/100 Mbps PoE Ethernet interfaces

Supported Standard:        AF and AT

Hikvision (DS-7732NI-Q4/16P) 32Ch 8MP NVR General

Power Supply:        100 to 240 VAC

Power:        Ã 300 W

Consumption(without hard disk and POE):        Ã 15 W

Working Temperature:        -10 oC ~ +55 oC (+14 oF~ + 131 oF)

Working Humidity:        10 % ~ 90 %

Dimensions:        440 Ã 393 Ã 75 mm (17.3″ Ã 15.5″ Ã 3.0″)

Weight(without HDD):        Ã 5 kg (11 lb)
