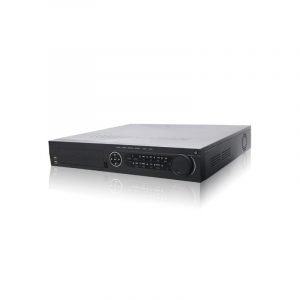

Hikvision NVR, Hikvision
Hikvision DS-7732NI-E4/16P 32 CH NVR 16POE
Hikvision DS-7732NI-E4/16P 32 CH NVR 16POE
- Up to 32 channel IP video
- Up to 6 Megapixel resolution recording
- 4 SATA interfaces
- Incoming bandwidth: 160Mb/s Outgoing bandwidth: 80Mb/s
- Video Compression H.264, MPEG4
- HDMI and VGA output at up to 1920x1080p resolution
₦175,000.00
Hikvision DS-7732NI-E4/16P 32 CH NVR 16POE
| Video/Audio Input | ||
|---|---|---|
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| IP video input: | 32-ch | |
| Network | ||
|---|---|---|
| Remote connection: | 128 | |
| Incoming bandwidth: | 160Mbps | |
| Outgoing bandwidth: | 80Mbps | |
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA output: | 1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz |
|
| Recording Resolution: | 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Frame Rate: | Main stream: 50 fps (P) / 60 fps (N) Sub-stream: 50 fps (P) / 60 fps (N) |
|
| Audio Output: | 1-ch, RCA (Linear, 1kΩ) | |
| Synchronous Playback: | 16-ch | |
| Decoding | ||
|---|---|---|
| Capability: | 16-ch@4CIF, 12-ch@720P, 6-ch@1080P |
|
| Live view / Playback: | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Hard Disk | ||
|---|---|---|
| SATA: | 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs | |
| Capacity: | Up to 6TB capacity for each HDD | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface | |
| USB Interface: | Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
|
| Alarm In: | 16-ch | |
| Alarm Out: | 4-ch | |
| POE | ||
|---|---|---|
| Supported Standard: | AF and AT | |
| Interface: | 16 independent 100 Mbps PoE network interfaces | |
| Max. Power: | 200W | |
| Hikvision DS-7732NI-E4/16P 32 CH NVR 16POE General | ||
|---|---|---|
| Power Supply: | 100~240VAC | |
| Consumption(without hard disk and POE): | ≤ 20W | |
| Working Temperature: | -10 oC ~ +55 oC (+14 oF~ + 131 oF) | |
| Working Humidity: | 10 % ~ 90 % | |
| Chassis: | 19-inch rack-mounted 1.5U chassis | |
| Dimensions: | 445 × 390 × 70mm (17.5 ×15.3 × 2.8 inch) | |
| Weight(without HDD): | ≤ 4 Kg (8.82 lb) | |
