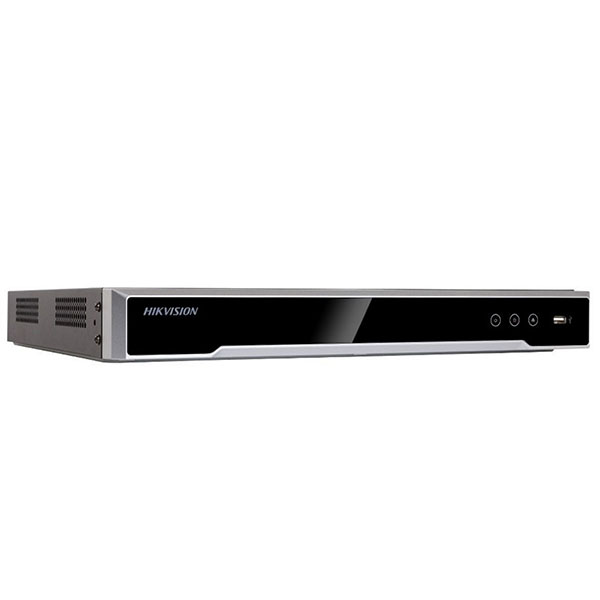

Hikvision DS-7608NI-Q2/8P 8 Channel NVR


Hikvision DS-7608NI-Q2/8P 8 Channel NVR

  • Up to 8-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
  • Up to 80 Mbps incoming bandwidth


Hikvision’s 8 Channel NVR has a centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc. It is connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms is guaranteed  for optimal performance.

This Hikvision 8 Channel NVR has other features such as:

  • Instant playback for assigned channel during multi-channel display mode
  • Smart search for the selected area in the video; and smart playback to improve the playback efficiency
  • 1 self-adaptive 10/100/1000 Mbps network interface
  • 8/16 independent PoE network interfaces are provided
Video/Audio InputHikvision 8 Channel NVR
Two-way audio input:1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input:8-ch
IP Video input:Up to 8 MP resolution


Hikvision DS-7608NI-Q2/8P 8 Channel NVR Network
Incoming bandwidth:80Mbps
Outgoing bandwidth:80Mbps


Video/Audio Output
HDMI Output:1-ch, resolution:4K (3840 × 2160)/30Hz,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.
NVR Recording Resolution:8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:1-ch, RCA (Linear, 1kΩ)
Synchronous Playback:8-ch
Hikvision VGA Output:1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz


Decoding format:H.265/H.265+/H.264/H.264+/MPEG4
Capability:1-ch @ 8 MP / 4-ch @ 1080p
Live view / Playback:8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF


Hard Disk
SATA:2 SATA interfaces
Capacity:Up to 6TB capacity for each disk
Capacity:Up to 6TB capacity for each HDD


External Interface
Network Interface:1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface:2, USB2.0


Supported Standard:AF and AT
Interface:8 independent 10 /100 Mbps PoE Ethernet interfaces
Max. Power:80W


Hikvision DS-7608NI-Q2/8P 8 Channel NVR General
Power Supply:100 to 240 VAC
Power:≤ 180W
Consumption(without hard disk and POE):≤ 15W
Working Temperature:-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:10 % ~ 90 %
Chassis:1U chassis
Dimensions:385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″)
Weight(without HDD):≤ 2.6 kg (5.7 lb)
