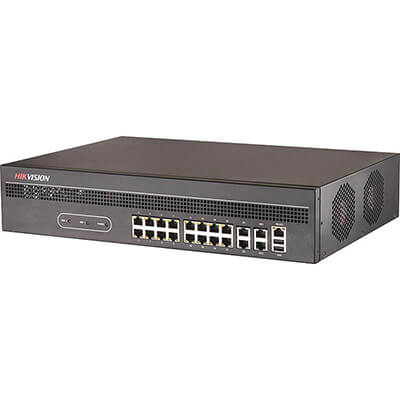

Hikvision DS-6916UDI 16Ch DVR IP to Analog

Hikvision DS-6916UDI 16Ch DVR IP to Analog

  • DS-6916UDI provide HDMI (adaptable to DVI-D) and BNC output interfaces.
  • Up to 4K (3840 x 2160@30 Hz) via HDMI interface (only for even interface), and up to 1080p@60Hz via VGA interfaces
  • Up to 16-ch decoding at 12 MP resolution (DS-6916UDI)
  • H.265+/H.265, H.264+/H.264, MPEG4 and MJPEG video stream formats.
  • PS, RTP, TS, ES, HIK encapsulation formats
  • Supports window opening and window roaming
  • Three encoding levels. baseline, main, and high-profile
  • G/722, G711A, G726, G711U, MPEG2-L2, and AAC audio stream formats
  • Accessible by panoVu network camera
  • Remote video files’ decoding output.
  • Supports window opening and window roaming.
  • Supports multi-screen control with PC installed with RSC server.
  • Supports Wi-Fi module access to display the signal from IOS/Android mobile phone or pad on video wall.
  • Wi-Fi can be enabled via the Web browser or client software. You can get stream and decode the video on the video wall when Wi-Fi is enabled if no wired network can be accessed.
  • Gets stream and decodes via URL and RTSP from encoding devices.
  • Configurable LED width and height parameters when the LED is connected.
  • Regular and irregular virtual screen configurable to display multiple signal sources and get rid of the restriction of physical screen.


Video/Audio input
VGA and DVI-I input:|WSXGA: 1680×1050/60Hz
WXGA: 1440×900/60Hz
WXGA: 1280×800/60Hz, 1366×768/60Hz,
1080p: 1920 × 1080@50/60Hz
UXGA: 1600 × 1200@60Hz
XVGA: 1280 × 960@60Hz
720p: 1280 × 720@50Hz/60Hz
SXGA: 1280 × 1024@60Hz
XGA: 1024 × 768@60Hz


Video/Audio output
HDMI output:|16-ch
4K: 3840 × 2160@30Hz ( for odd interface only)
1080p: 1920 × 1080@50/60Hz
WSXGA: 1680×1050/60Hz
UXGA: 1600 × 1200@60Hz (for odd interface only)
720p: 1280 × 720@50Hz/60Hz
SXGA: 1280 × 1024@60Hz
XGA: 1024 × 768@60Hz
BNC output:|8-ch, 2 DB 15
Hikvision DS-6916UDI 16Ch DVR IP to Analog Audio/Video decoding
Decoding resolution:|Up to 12MP
Decoding channel:|128-ch
Decoding capability:|12MP@20fps:16-ch
8MP@30fps: 32-ch
5MP@30fps: 48-ch
3MP@30fps: 80-ch
1080p@30fps/3 Mbps: 128-ch
Split screen:|1/4/6/8/9/12/16/25/36
Hikvision DS-6916UDI 16Ch DVR IP to Analog External interface
Network interface:|2, 10/100/1000 Mbps self-adaptive management network interface
2, 10/100/1000 Mbps self-adaptive Ethernet interface
16, 10M/100 Mbps self-adaptive Ethernet interface
Serial interface:|1 RS-232 (RJ45), 1 RS-485
Two-way audio in:|1-ch, 3.5 mm connector (2.0 Vp-p, 1 KΩ)
Two-way audio out:|1-ch, 3.5 mm connector (2.0 Vp-p, 1 KΩ)
Audio output:|16-ch, 2 DB 15
Alarm in:|8
Alarm out:|8
Hikvision DS-6916UDI 16Ch DVR IP to Analog General
Power supply:|100 to 240 VAC
Power consumption:|≤ 108 W
Working temperature:|-10 °C to +55 °C (14 °F to 131 °F)
Working humidity:|10% to 90%
Dimensions(W × D × H):|440 × 311 × 80 mm (17.32 × 12.24 × 3.15 inch)
Weight:|≤ 6.4 kg (14.11 lb)
