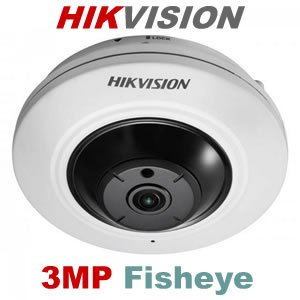

Hikvision DS-2CD2935FWD-I 3MP Network Fisheye Camera

Hikvision DS-2CD2935FWD-I 3MP Network Fisheye Camera

Up to 3 megapixel high resolution

â 2560 Ã 1920 @30fps

â H.265, H.265+, H.264+, H.264

â Support 14 display modes

â FOV: horizontal FOV 180Â, vertical FOV 180Â

â Dual video streams

â DC12V & PoE (802.3af)

â Digital Noise Reduction

â Support on-board storage, up to 128 GB

â Up to 8m IR range

â -S: Audio/Alarm IO

Camera

Image Sensor:        1/2.5″ Progressive Scan CMOS

Signal System:        PAL/NTSC

Min. Illumination:        Color: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on

Shutter time:        1/3 s to 1/100,000 s

Slow shutter:        Support

Lens:        1.05 mm @ F2.2, horizontal field of view: 180Â, vertical field of view: 180Â

Lens Mount:        M12

Day& Night:        IR cut filter with auto switch

Wide Dynamic Range:        120 dB

Digital noise reduction:        3D DNR

Hikvision DS-2CD2935FWD-I 3MP Network Fisheye Camera Compression Standard

Video Compression:        H.265+/H.265/H.264+/H.264/MJPEG

H.264 code profile:        Main Profile/High Profile

Video bit rate:        32Kbps~16Mbps

Audio Compression:        -S: G.711/G.722.1/G.726/MP2L2/PCM

Audio bit rate:        64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Dual Stream:        Yes

Hikvision DS-2CD2935FWD-I 3MP Network Fisheye Camera Image

Max. Image Resolution:        2560Ã1920

Frame Rate:        50Hz: 25fps (2560 Ã 1920, 2048 Ã 1536, 1280 Ã 960)

60Hz: 30fps (2560 Ã 1920, 2048 Ã 1536, 1280 Ã 960)

Sub Stream:        50Hz: 25fps (352Ã 288, 704 Ã 576)

60Hz: 30fps (352 Ã 240, 704 Ã 576)

Image Enhancement:        WDR/3D DNR/Backlight Compensation/Defog

Image Settings:        Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Distortion Correction:        Support

BLC:        Support

ROI:        Support 1 fixed region for each stream

Day/Night Switch:        Auto/Scheduled

Hikvision DS-2CD2935FWD-I 3MP Network Fisheye Camera Network

Network Storage:        Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS)

Protocols:        TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6

General Function:        One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy

mask, Watermark, IP address filtering

System Compatibility:        ONVIF (Profile S, Profile G), ISAPI

Interface

Audio:        With âS model: 1 input (line in), 1 output

Communication Interface:        1 RJ45 10M / 100M Ethernet interface

Alarm:        with -S model：1 alarm input, 1 alarm output (DC24V, 1A or AC110V, 500mA, max.)

On-board storage:        Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Hikvision DS-2CD2935FWD-I 3MP Network Fisheye Camera Smart Feature-set

Line Crossing Detection:        Cross a pre-defined virtual line

Intrusion Detection:        Enter and loiter in a pre-defined virtual region

Hikvision DS-2CD2935FWD-I 3MP Network Fisheye Camera General

Operating Conditions:        -10 ÂC to +50 ÂC (-14 ÂF to +122 ÂF), Humidity 95% or less (non-condensing)

Power Consumption:        12 VDC, 0.5 A, max. 6 W

PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W

IR Range:        Up to 8m

Dimensions:        Î 119.9 Ã 41.2 mm (Î 4.72â Ã 1.62â)

Weight:        600 g (1.32 lbs.)
