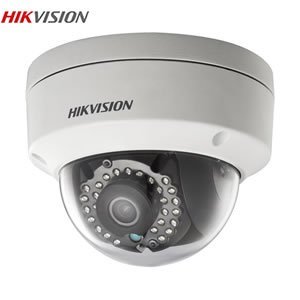

HIKVISION DS-2CD1143G0-I 4MP Dome


HIKVISION DS-2CD1143G0-I 4MP Dome

1/3″ progressive scan CMOS  3D DNR (Digital Noise Reduction)
 2560 × 1440@20fps  Up to 30 m IR range
 2.8 mm/4 mm fixed lens  PoE (Power over Ethernet)
 H.265+, H.265, H.264+, H.264  IP67, IK10
 Triple stream
 120 dB WDR (Wide Dynamic Range)

36,000.00

HIKVISION DS-2CD1143G0-I 4MP Dome

The DS-2CD1143G0-I 2.8mm 4MP Turrret Dome camera from Hikvision that can provide HD images in ultra-low light scenarios. The IR LEDs and lens are kept in separate windows to minimize any IR reflection and ensure an excellent image is provided at all times. Wide dynamic range and 3D digital noise reduction technology are used in conjunction with the IR LEDs to provide excellent night time images up to 30m.

Key Features

1/3″ progressive scan CMOS

3D DNR (Digital Noise Reduction)

2560 Ã 1440@20fps

Up to 30 m IR range

2.8 mm fixed lens

PoE (Power over Ethernet)

H.265+, H.265, H.264+, H.264

IP 67

Dual stream

Digital WDR (Wide Dynamic Range)

Camera
Image Sensor 1/3″ progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter Yes
Auto-Iris No
Day &Night IR cut filter
Digital Noise Reduction 3D DNR
WDR 120 dB
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°

HIKVISION DS-2CD1143G0-I 4MP Dome Lens
Focal Length 2.8 mm, 4 mm
Aperture F2.0
Focus No
FOV
2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
Lens Mount M12

HIKVISION DS-2CD1143G0-I 4MP Dome IR
IR Range Up to 30 m
Wavelength 850 nm
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream:H.265/H.264
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps

Smart Feature-set
Region of Interest 1 fixed region for main stream and sub-stream
Behavior Analysis Line crossing detection, intrusion detection
Max. Resolution 2560 × 1440
Main Stream
Max. Frame Rate
50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Sub-stream
Max. Frame Rate
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third steam
Max. Frame Rate
50Hz: 1080P@1fps
60Hz: 1080P@1fps

Image Enhancement BLC, 3D DNR,HLC
HIKVISION DS-2CD1143G0-I 4MP Dome Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or
web browser
Day/Night Switch Auto, scheduled
Network
Network Storage NAS (NFS, SMB/CIFS)
Alarm Trigger Motion detection, video tampering alarm, illegal login.
