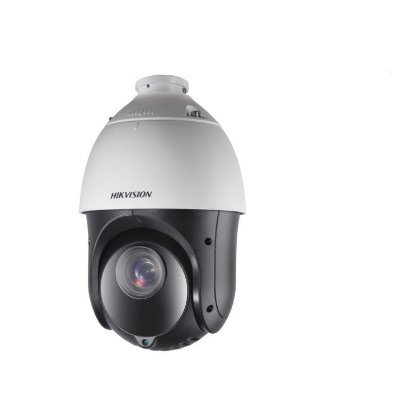

Hikvision DS-2AE5223TI-A PTZ Camera


Hikvision DS-2AE5223TI-A PTZ Camera

  • 1/3″ Progressive Scan CMOS
  • 1280×720/1920×1080. 23X Optical Zoom
  • DWDR. 3D intelligent positioning function.
  • Up to 150m IR distance. Support Turbo HD and BNC output.
  • Hikvision DS-2AE5223TI-A PTZ Camera has a 5-inch Lens.

165,000.00

Compare

Hikvision DS-2AE5223TI-A PTZ Camera Specifications

Make Hikvision
Manufacturer Hikvision
Model code DS-2AE5223TI-A
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 1080P
HD Yes
Dome Type PTZ
Sensitivity lux 0.05
Pan Speed/sec Manual: 0.1 ~ 400 , Preset: 400
Tilt Speed/sec Manual: 0.1 ~ 120, Preset: 200
Digital (DSP) Yes
Electrical Specifications Voltage: 24V AC
Power Consumption: 24 W
Focal length 4 ~ 92 mm



Presets 256
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1 ~ 1/10,000s
S/ N (Signal/ Noise) Ratio dB 50
Signal Mode PAL, NTSC
Zoom Ratio x16
Physical Specifications Dimensions mm: 185 × 330
Weight g: 4000
Environmental Specifications Operating Temp o C: -30 ~ +65 C (-22 ~ +149 F)
Operating Humidity %: 90
Protection: IP66
Additional info It has 1.3MP CMOS Image Sensor with up to 150m IR distance. 3D intelligent positioning and it supports Turbo HD and BNC output.

White Balance: Auto / Manual / ATW / Indoor / Outdoor
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
WDR: ≥ 120 dB
Anti-shake: On / Off
Shutter Time: PAL: 1-1/10,000s
NTSC: 1-1/10,000s
Day& Night: ICR
Digital Zoom: 16x
Privacy Mask: 8 programmable privacy masks
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 4.8 mm to 120 mm, 25× Optical
Zoom Speed: Approx. 3.6 s (optical, wide to television)
Field of View: Horizontal field of view: 57.6° to 2.5° (wide to television)
Vertical field of view: 34.4° to 1.4° (wide to television)
The diagonal field of view: 64.5° to 2.9° (wide to television)
Minimum Working Distance: 10-1500mm (Wide-Tele)
Aperture Range: F 1.6 to F 3.5



Pan & Tilt
Pan Range: 360°endless
Pan Speed: manual speed: 0.1° to 120°/s
preset speed: 120°/s
Tilt Range: -15°-90° (Auto-Flip )
Tilt Speed: manual speed: 0.1° to 80°/s
preset speed: 80°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples



Infrared
IR Distance: 150m
IR irradiation angle: Adjustable by zoom



Alarm
Alarm Input: 2
Alarm Output: 1



 Input & Output
Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
UTC function: UTC protocol (or HIKVISION-C protocol in the previous DVR). Hikvision DS-2AE5223TI-A PTZ Camera



 General
RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language: English
Power Supply: 24V AC
Power Consumption: Max. 30 W (IR:10 W)
Working Temperature/Humidity: -30 °C-65°C(-22°F-149°F)
90% or less
Protection Level: IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions: Ø 208 mm × 305 mm (Ø 8.19″ ×12.01″)
Weight (approx.): 3.3 kg (7.28 lb.)



  • 1/3″ Progressive Scan CMOS
  • 1280×720/1920×1080. 23X Optical Zoom
  • DWDR. 3D intelligent positioning function.
  • About 150m IR distance. Support Turbo HD and BNC output.
  • Hikvision DS-2AE5223TI-A PTZ Camera. The function of this Hikvision DS-2AE5223TI-A PTZ Camera is in the 5-inch lens that it possesses which allows it to so comfortably zoom in objects and do every other necessary function. Hikvision DS-2AE5223TI-A PTZ Camera also possesses an IR distance of up to 150m which makes for clearer night viewing function.
