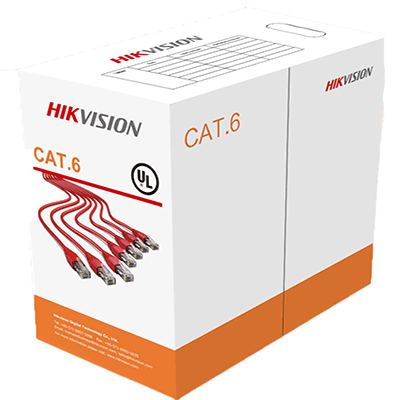

Hikvision DS-1LN6-U Full Copper Cat6 Cable


Hikvision DS-1LN6-U Full Copper Cat6 Cable with lenght of 305m.

  • Category:U/UTP CAT6-4P-PVC-CM
  • Test Standard: ISO/IEC11801、
  • Material: SOLID-Bare Copper
  • Cable Color: Orange
  • Diameter: 0.56mm
  • Material: PVC(complies RoHS),CM
  • Ambient temp.: -20° C – 75° C℃
  • Packing length: 305m

38,000.00



Hikvision DS-1LN6-U Full Copper Cat6 Cable
Category:U/UTP CAT6-4P-PVC-CM
Test Standard:ISO/IEC11801、TIA-568-C.2 、YD/T1019



Conductor
Material:SOLID-Bare Copper
Copper content:
Nom.O.D.(mm):0.565
up +0.005
down -0.005



Insulation
Material:HDPE
Diameter:1.02±0.03mm



Hikvision DS-1LN6-U Full Copper Cat6 Cable Sheath
Thickness:0.55±0.05 mm
External O.D.:6.2±0.4 mm
Surface:Clean,Frap,Satiation
Material:PVC(complies RoHS),CM
Color:Multiple



Surface Printing
Letter height:3.0±0.3mm
Color:Black
Print error & Space:≤±0.5%,1m



Hikvision DS-1LN6-U Full Copper Cat6 Cable General
Core Color:1 White- Blue /Blue
2 White-Orange /Orange
3 White-Green /Green
4 White- Brown /Brown
Packing:Wooden Tray & Carton
Carton dimension:Per request
Packing length:305±1.5m
Rip-cord:Yes
Drain wire:No



Sheath Physical Properties:Before Aging Tensile Strength (Mpa) ≥13.5
Elongation(%) ≥150
Aging Period (℃×hrs) 100℃×24h×10d
After Aging Tensile Strength(Mpa) ≥12.5
Elongation(%) ≥125
Cold bend(-20±2℃×4h) 8×Cable O.D.,No visible cracks
Electrical Characteristics:1.0-250.0MHz Impedance ((Ω) 100±15
1.0-250.0MHz Delay Skew (ns/100m) ≤45
DC Resistance (Ω/100m) max 9.38
DC Conductor Resistance Unbalance (%) max 5.0
Ambient temperature:-20℃ – 75℃
