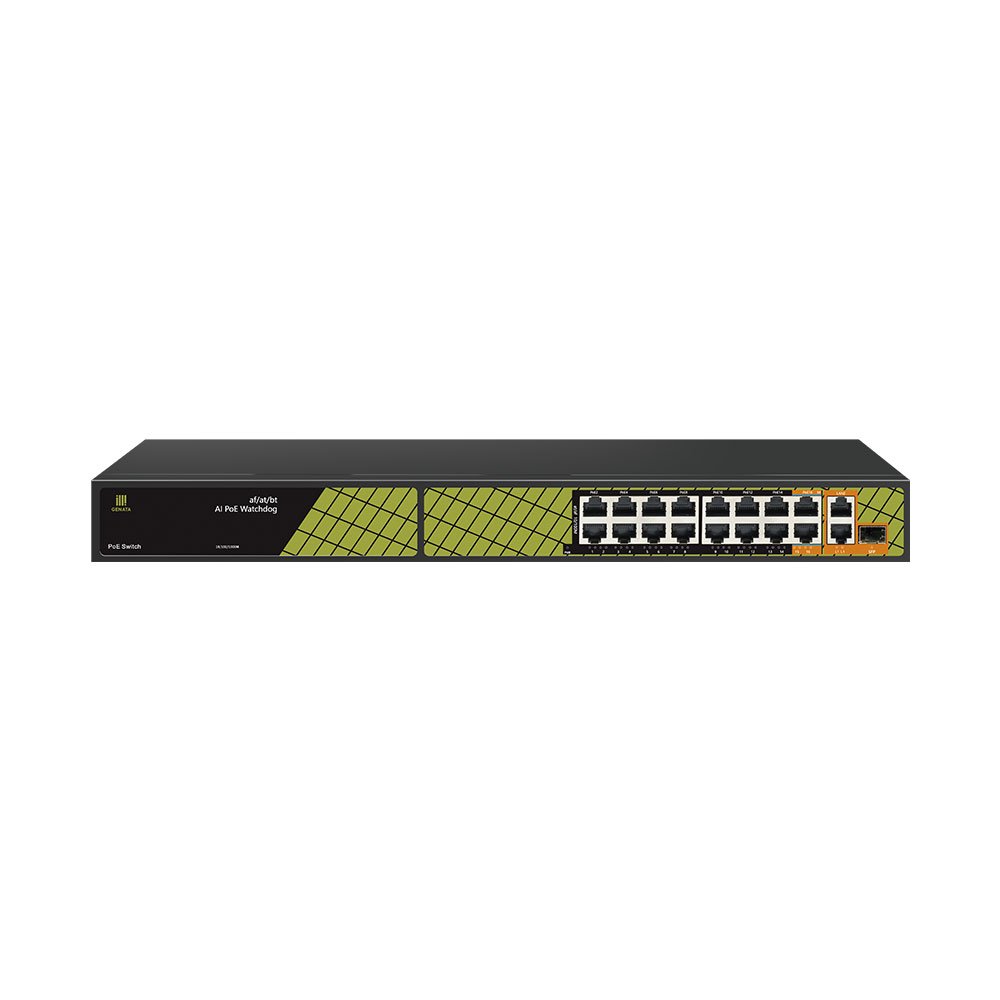

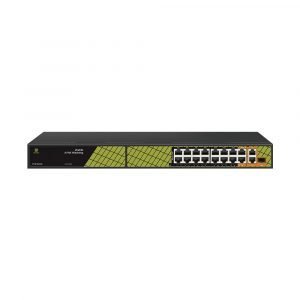

GNT-P4813V6 16Port POE Switch


The Genata GNT-P4813V6 16Port POE Switch is a 16port, PoE Switch, with 14ports of fast (PoE), 2gigabyte fast(PoE) port, 2gigabyte ethernet(UP-LINK), and 1SF port making it an  AI Hybrid 16port POE Switch. This device is capable of transmitting power and data signals over a distance of up to 130 meters. It features the new AI Watchdog PoE, which automatically detects the power receiving port, finds a dead device, and restarts the device after power failure. It also complies with IEEE 802.3af / at/bt standard, single-port MAX output power is 60W.

72,000.00

Compare

Genata GNT-P4813V6 16Port POE Switch

The Genata GNT-P4813V6 16Port POE Switch is a 16port, PoE Switch, with 14ports of fast (PoE), 2gigabyte fast(PoE) port, 2-gigabyte ethernet(UP-LINK), and 1SF port making it an  AI Hybrid 16port POE Switch. This device is capable of transmitting power and data signals over a distance of up to 130 meters. It features the new AI Watchdog PoE, which automatically detects the power receiving port, finds a dead device, and restarts the device after power failure. It also complies with IEEE 802.3af / at/bt standard, single-port MAX output power is 60W.

Also, the Genata GNT-P4813V6 16Port POE Switch houses a 2-gigabyte port with a transmission speed of  1/100/1000Mbps, a 6KV Lightning protection,8KV electro-static protection, Short-circuit protection, Over-Temperature protection that helps in Preventing the device from the surge.

Features

Model: GNT- P4813V6

Ports: 1*1000Mbps SFP Port+2*1000Mbps Uplink ports +2* 1000Mbps PoE port(Compatible uplink) + 14*100Mbps PoE ports
Transmission Rate: 2000Mbps Full-Duplex; 10 or 100 or 1000Mbps Half Duplex
Transmission Distance: 0-130m
Performance Specification
Bandwidth: 12.80Gbps
Network Latency (10 to 1000Mbps): ≦16μs (use the 64byte package size)
MAC address table: 8K
The Frame Filter & Transmission Rate: 14800pps the most for 10M port, 148800pps the most for 100M port,1488000pps the most for 1000M port
Networking Standard: IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX/ IEEE 802.3ab 1000BASE-T, IEEE 802.3xFlowControl, IEEE 802.3af/at/bt Power over Ethernet
Power input: AC 110~220V Total≤400W
PoE Watchdog: Port 1~16
Power output: PoE1~14Port:1/2(+52V),3/6(GND)≤30W
PoE 15~16 Port:1245(+53V),3678(GND) compatible1/2(+52V),3/6(GND)≤60W
Protection Level
Lightning Protection:6KV, Per: IEC61000-4-5
ESD Protection:8KV, Per: IEC61000-4-2
Physical Specifications: Size(L*W*H):430mm*180mm*45mm
Working Environment
Operating Temperature: -10℃ ~55℃ ( -14°~131℉)
Storage Temperature: -40℃ ~70℃ ( -104°~158℉)
Warranty: Whole machine: 1 year
Package Content: Installation Manual

With the Genata brand of switches extending the transmission distance of your CCTV cameras has never been easier, just link it up to your NVR and add your cameras.
