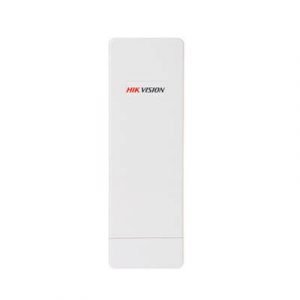

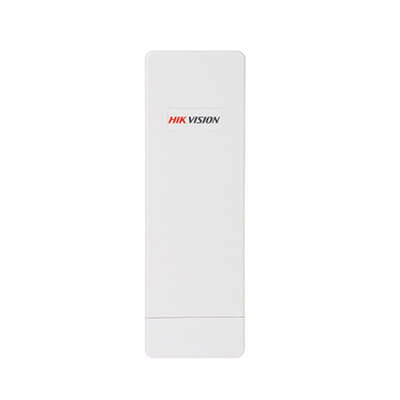

DS-3WF03C-D Outdoor Video Wireless Network Bridge


  • High performance 802.11n 2×2 MIMO chip
  •  5 operation mode: Access Point, Station, WDS Access Point, WDS Station, WDS Repeater
  •  Point-to-point connection
  •  Unique RF and antenna design enables long-range transmission
  •  Wireless multimedia optimization technology guarantees video/audio transmission QoS
  •  Web based working scenario selection makes the installation and setting much easier
  •  Reliable PoE power supply, support 802.3af standard
  •  Web-based configuration, easy to use
  •  Waterproof housing and accessory kit protects

129,240.00

Wireless
Standard: IEEE802.11 a/n(2T2R 300Mbps)
Operation frequency: 5745 to 5825MHz(More Non-standard channels is availability, the range: 4920MHz to 6100MHz)
Modulation mode: 802.11 a/n: OFDM
Antenna: Internal, Gain 15dBi, H:40° V:15°
Output power: 27dBm
Receive sensitivity: -74dBm@65Mbps, -96dBm@6Mbps
Data rate: 11n:13.5/15/27/30/40.5/45/54/60/81/90/108/120/121.5/135/150/162/180/216/240/270/300Mbps(40MHz)
130/117/104/78/65/58.5/52/39/26/13/6.5Mbps(20MHz)
11a :54/48/36/24/18/12/9/6Mbps(Auto)
Hardware
Power supply: 24V/0.5A PoE
Interface: PoE×1+LAN×1
Operation temperature: -30℃ to +75℃ (-22℉ to +167℉)
Storage temperature: -40℃ to +85℃ (-40℉ to +185℉)
Operation humidity: 5% to 95%RH non-condensing
Dimensions: 270×40×88 mm (10.6×1.57×3.46 inch)
Software
Encryption: 802.1x/WPA-PSK/WPA2-PSK
Network mode: Router/Bridge
Operation mode: Access Point, Station, WDS Access Point, WDS Station
Security: IP/MAC filter, SSID hidden
Network protocol: TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP
TDMA: Supported (Avoid 802.11 hidden-node problems, and improve the point-to-multi-point performance)
Auto ACK timing adjust: Supported(It can automatically choose optimized parameter in long distance transmission,keep the performance always the best)
Management and Logs: NTP, Syslog, Telnet, AC
Web based configuration: Supported
Firmware update: Support update firmware by Web page
Bandwidth supported: 5M/10M/20M/40MHz
  • High performance 802.11n 2×2 MIMO chip
  •  Longest transmission range: 3Km, and effective transmission throughput: 40Mbps
  •  Integrated XTrans technology, including TDMA, intelligent rate control, Auto ACK Time-out adjust
  •  TDMA solves the problems of hidden-node problem in the 802.11 network, thus having better long-distance and PTMP performance
  •  5 operation mode: Access Point, Station, WDS Access Point, WDS Station, WDS Repeater
  •  Point-to-point connection
  •  Unique RF and antenna design enables long-range transmission
  •  Wireless multimedia optimization technology guarantees video/audio transmission QoS
  •  Web based working scenario selection makes the installation and setting much easier
  •  Reliable PoE power supply, support 802.3af standard
  •  Web-based configuration, easy to use
  •  Waterproof housing and accessory kit protects
