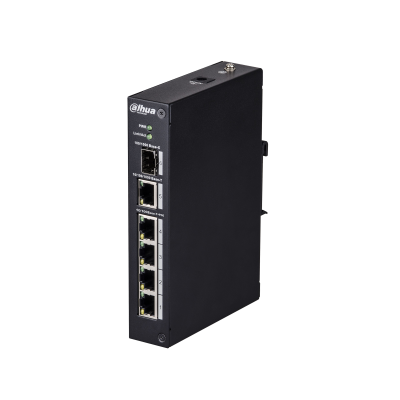

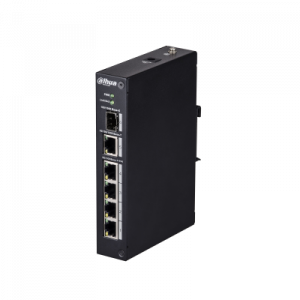

Dahua LONG RANGE 4-PORT POE SWITCH – DH-PFL2106-4ET-96

Dahua

37,000.00

Technical Specification
Model DH-PFL2106-4ET-96
Ethernet Port 1*100/1000 Base-X1*10/100/1000 Base-T4*10/100 Base-T(PoE power supply)
PoE Power Consumption Port1,2,3≤30W, Port4≤60W, Total≤96W
PoE Protocol IEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity 6.8Gbps
Packet Forwarding Rate 3.57Mpps
Packet Buffer Memory 1Mb
MAC Table Size 8K
Flow Control Enable by default
Application Humidity 10%~90%
Power DC48~57V power adapter
Lightning Protection Common Mode 4KVDifferential Mode 2KV
Working Temperature ﹣30°C~65°C
Weight 480g
Dimension(W×D×H) 150mm×100mm×30mm
Transmission Performance:
Take CAT5E/CAT6 as an example (Max. DC resistance<10Ω/100m)
DH-PFL2106-4ET-96 Port 1/2/3(IEEE802.3af/at) Port 4(Hi-PoE) LED Indicator
100m Bandwidth(Mbps) 100 100 IEEE mode: Normally on
Load capacity(W) 25.5 60
200m Bandwidth(Mbps) 100 100 E100 mode: On for 3 seconds, off for 1 second
Load capacity(W) 25.5 42
300m Bandwidth(Mbps) 100 100 E100 mode: On for 3 seconds, off for 1 second
Load capacity(W) 25.5 28
500m Bandwidth(Mbps) 10 10 E10 mode: On for 1 seconds, off for 1 second
Load capacity(W) 17 17
800m Bandwidth(Mbps) 10 10 E10 mode: On for 1 seconds, off for 1 second
Load capacity(W
