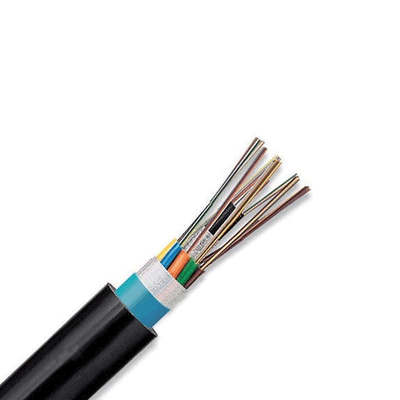

48 Core Single Mode Fiber Optic Cable


FEATURES

  • Suitable for internal and external use.
  • Ducts, aerial installations, and direct burial.
  • Distribution and general purpose cables.
  • The cable consists of a single tube containing 2 to 24 fibers.
  • Water blocking gel gives moisture protection for cable installation in ducts.

TECHNICAL SPECIFICATION OF 48 CORE SINGLE MODE FIBER

No. Fibres  4 – 12 Core 16 – 24 Core
 Outer Diameter   7.2mm   8.5mm
 Weight kg / km   59   72
 Tensile Strength (during installation)   1200N   1200N
 Crush Resistance   2000N   2000N
 Bending Radius  Approx 10 – Times OD  Approx 10 – Times OD
 Operating Temperature Range   -20O C to +70O C   -20O C to +70O C
  • 48 core single mode fiber is Suitable for internal and external use.
  • Ducts, aerial installations, and direct burial.
  • Distribution and general purpose cables.
  • The cable consists of a single tube containing 2 to 24 fibers.
  • Water blocking gel gives moisture protection for cable installation in ducts.
  • When there are more than 12 fibers, they are divided into two groups where a colored thread identifies each group.
  • Physical protection and tensile strength are provided by aramid yarn or fiberglass wound around the tube.
  • LSZH sheath for internal and external use.
  • A ripcord is located under the jacket to facilitate jacket removal.
  • Suitable for occasionally flooded ducts.
  • Small diameter and lightweight.
  • Cost effective. » Wide operating temperature range.
  • A wide range of jacket options.
  • Rodent resistant.
  • LSZH jackets meet IEC-60332-1 standard.
