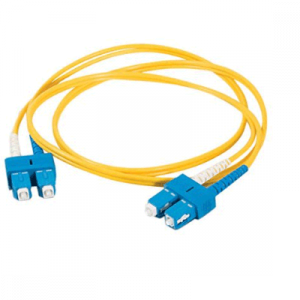

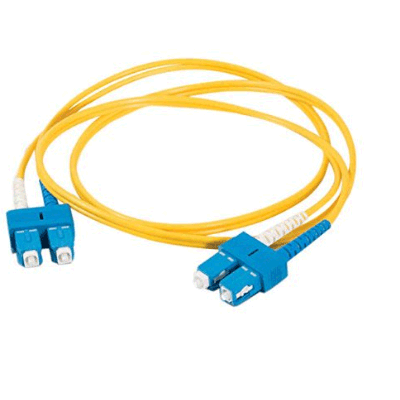

2m SC-SC 62.5/125 OM1 Duplex Multimode PVC Fibre Optic Cable


FEATURES

  • Optical Multimode 1 (OM1) fibre supporting 200/500 MHz.km OFL at 850/1300 nm
  • Maximum Connector Loss: 0.50 dB
  • Typical Connector Loss: 0.30 dB
  • Typical Return Loss: -25 dB
  • Buffer Material: PVC

Product Specifications of 2M SC-SC



UPC : 757120852407
Weight : 0.047 KG

2M SC-SC Connectors:

  • SC Connector Dimensions: 10.6mm Height x 26mm Width x 58mm Depth (with installed duplex clip)
    Cable:
  • Optical Multimode 1 (OM1) fibre supporting 200/500 MHz.km OFL at 850/1300 nm
  • Maximum Connector Loss: 0.50 dB
  • Typical Connector Loss: 0.30 dB
  • Typical Return Loss: -25 dB
  • Buffer Material: PVC
  • Buffer OD: 900 µm
  • Jacket Material: LSZH PVC (OFNR riser-rated)
  • Jacket OD: 1.8 mm
  • Installation Tensile Load: 100 N (445 lbs)
  • Long-Term Tensile Load: 50 N (222 lbs)
  • Maximum Tensile Load: 100 N/cm
  • Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in)
  • Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in)
  • Crush Resistance: 750 N/cm
  • Impact Resistance: 1,000 cycles
  • Flex Resistance: 5,000 cycles
  • Attenuation at 1300 nm: 1.0 dB/km
  • Attenuation at 850 nm: 3.5 dB/km
  • Operating Temperature: -20°C to +70°C
