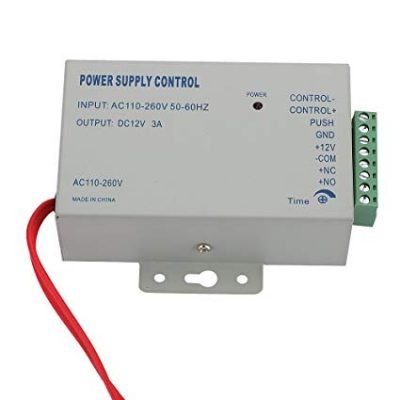

12V 3A Power Supply Door Access Control Systems Switch Power Su


  • Compatible with E/M lock, access controller, exit push button and RFID reader
  • Can reduce the load of access controller, save wiring to reduce the hidden trouble
  • Set NC/NO outputs, can control various types of electric locks
  • Input Voltage: AC 110-240V (Worldwide voltage) ;Output Voltage: DC 12V/3A
  • Based delay control circuit, lock time can be in 0-15 seconds

Package:
1 x 110-240V Power Supply
1 x User manual

Features:
Compatible with E/M lock, access controller, exit push button and RFID reader
Can reduce the load of access controller, save wiring to reduce the hidden trouble
Set NC/NO outputs, can control various types of electric locks
Based relay control circuit, lock time can be adjusted with 0 -15 seconds
Automatic protection function for dangerous situation: overload / over voltage / short circuit
Protection mechanism :power may be temporarily disconnected or the fuse auto insured
Operative device: E/M Lock, access controller, exit push Button
Compact design and light weight
Worldwide voltage input AC 110 – 240V

Specification:
Input Voltage: AC 110-240V (Worldwide voltage)
Input Frequency: 50-60Hz
Output Voltage: DC 12V/3A
Power: 36W
Load: 1% Typical
Output Stability: 0.5% Typical
Hold Time: Full Load Typically 20ms
Operating Temperature: -20C~65C
Adjustable Locking Delay: 0~15sec
Dimensions: 120Lx95Wx38H(mm) / 4.72Lx3.74Wx1.50H(inch)
